Datalogic FBC9080-N100 - Fieldbus Converter
005013-HW-DATALOGIC-013
Overview

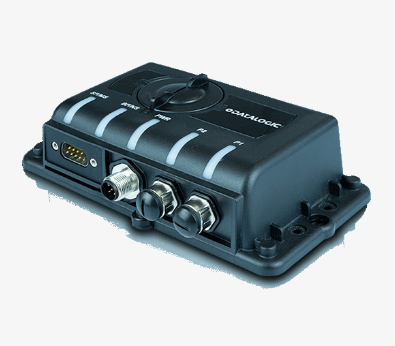

The fieldbus converter FBC9080 is an easy way to add industrial fieldbus connectivity to all PowerScan 9xxx as well as any other device equipped with standard RS-232 interface. Its IP65 protection level and circular M12 connectors make it ideal for demanding industrial Ethernet applications, while the dual port switch eliminates the need for expensive external switches.
| Feature | Specification |
|---|---|
| Interface | RS-232 ↔ PROFINET IO; Ethernet TCP/IP option |
| Power Supply | 10–30 V DC, with scanner power 5 V @ 500 mA |
| Ethernet Ports | Dual M12 ports with integrated switch |
| Protection & Build | IP65, compact 158 × 43 × 98 mm, 290 g |
| Operating Conditions | –20 °C to +50 °C; 5–95% humidity |
| Configuration | Rotary switch, USB, Aladdin software tool |
| LEDs | Power, System, Network, Link/Activity indicators |
| Mounting | Panel, screw, or DIN-rail |
| Certification | CE & PROFINET certified |
The FBC9080-N100 integrates scanners into PLC System with PROFINET/IO support, while FBC9080-N200 connects devices to any PLC with EtherNet/IP IO support. Both models are also provided with a standard Ethernet TCP/IP data socket port that allows bi-directional point-to-point communication with the scanner. FBC9080-NX00 are easily configurable with Datalogic’s Aladdin™ software tool.
