Datalogic Matrix 120

  • NG # 005030-HW-DATALOGIC-030

Manufactured by:

This seller generally responds in under 48 hours

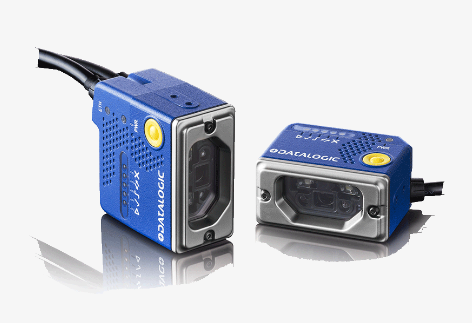

Matrix 120™ is the smallest ultra-compact industrial 2D imager in the market that fits into any integration space and embeds Ethernet connectivity. This is the newest entry level member of the best-in-class Matrix family of high performance industrial 2D imagers.

Specification

ApplicationElectronics, Factory Automation, OEM, Healthcare, Chemical and biomedical
Storage128 MB
Model937800001
MaterialZama, Zinc Alloy - Plastic reading window cover
ManufacturerDatalogic
Power consumption (W)1.6 - 2.4 W
SKU937800001
Dimensions45.4 x 48.5 x 23.5 mm
ESD CompliantYes
CommunicationRS-232, RS-422-USB 2.0 high speed, Main RS-232 or RS-422 FD, 2400 to 115200 bits
Power supply5 - 30 VDC
OutputTwo SW Programmable, PNP-NPN
SeriesMatrix 120

Description

The Matrix 120 is the perfect solution when small dimension, simple integration and performance are the key drivers. This makes the Matrix 120 the ideal product for OEM customers: Chemical/Biomedical industry and Print & Apply applications. Additionally, this imager is perfect for entry level applications in the Factory Automation arena: Electronics, Packaging and Food/Beverage.

The Matrix 120 is available in different models, including a WVGA sensor for standard applications or a 1.2 MP sensor for high resolution barcodes. Moreover, the wide-angle version makes the Matrix 120 the perfect solution for proximity reading and with the polarized model a 90° mounting is possible also over reflecting surfaces.
