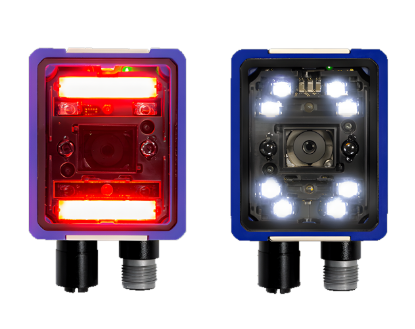

Datalogic Matrix 220

  • NG # 005031-HW-DATALOGIC-031

Manufactured by:

This seller generally responds in under 48 hours

The Matrix 220 Imager is engineered to deliver exceptional performance, leveraging a 1.2 MP high-resolution sensor, an advanced image multicore processing platform, cutting-edge lighting solutions, and industrial-grade electronic focus technology.

Specification

Resolution: 1280 x 960

- MP: 1.2

- Lens: 1/3" CMOS

- FPS: 45 Frames/s

- Readable Symbologies: 1D Codes, 2D Codes

- Power requirements: 10 - 30 VDC except PoE models

- Communication: Ethernet 10/100 Mbit/s

  • TCP/IP, UDP, FTP
  • PROFINET IO
  • Ethernet IP
  • Modbus TCP
  • OPC UA

- IP: 65

- Operation temperature: 0 tot 50 °C

- Dimensions: 78 mm (W) x 47 mm (H) x 38 mm (D)

Description

These features collectively position it as the premier choice for imaging in Electronics, Automotive, Packaging, and Document Handling applications.

Furthermore, its integrated flexible illumination system enhances its capability, making the Matrix 220 Imager perfectly suited for reading codes marked with DPM (Direct Part Marking).
