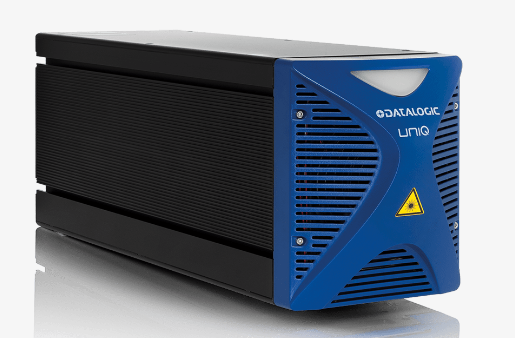

Datalogic UNIQ
005027-HW-DATALOGIC-027
Overview
UniQ™ is the first ultra-compact “ALL-IN-ONE” laser marking system based on fiber laser technology. Thanks to compact dimensions, the rugged IP54 grade housing, the complete absence of an external controller and fiber optic delivery cable, UniQ™ laser markers are really unique.
| Design | Ultra-compact all-in-one fiber laser marker, IP54 protected |
| Laser Specs | 15 W pulsed fiber laser; 1060–1080 nm; 10 kW peak; 0.75 mJ pulse energy; 15–100 kHz mod. |
| Optics | Supports F-theta lenses (e.g., M39, M85) |
| Motion & I/O | Embedded 4-axis controller; 10 × digital I/O; connectors for encoder and photocell |
| Connectivity | Ethernet, RS-232, 4× USB ports; 635 nm aiming beam |
| Safety | Built-in SLO (Safe Laser Off) |
| Physical Dimensions | 479 × 183 × 150 mm; 10.4 kg weight |
| Power | Integrated power supply; input 100–240 VAC, 50–60 Hz |
| Environment | Operating: 5–40 °C; rugged IP54 housing |
| Software & Services | Lighter Suite; EaseOfCare warranty and support contracts available |
With 15W of optical laser power, the UniQ™ laser marker offers flexibility in marking on a wide spectrum of materials. The ultra-compact design and the high efficiency, low noise, cooling system allows for easy integration even in tight spaces and complex environments. UniQ™ laser markers are powered by the latest version of Ligher, Datalogic’s laser marking software suite, and offer maximum customer ease of use and great flexibility in system integration.
