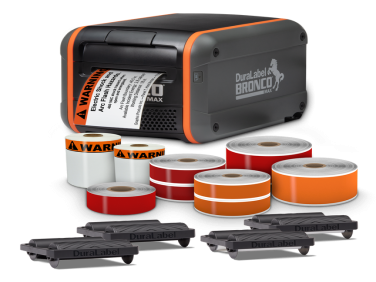

DuraLabel Bronco Max Solar Panel Kit
-
NG # 2279-HW-DUR-013
-
MF # DLBM-SOLAR
Manufactured by:
Achieve superior safety and compliance on your jobsite with the DuraLabel Bronco Max Solar Panel Marking Kit. This essential kit provides everything you need to create robust, solar-specific labels and signs quickly. Mark disconnection points, shock hazards, current, voltage, and ensure NEC Article 690 for photovoltaic system compliance.
Specification
Specification Size
13.5"(w) x 10.25"(D) x 8.5"(H)
Weight
9.65 lbs (4.37 kg)
Print technology
Thermal Transfer
Resolution
300 DPI
Print Speed
Up to 3" per second
Print Width
0.5" - 4.0"
Maximum Print Length
120"
Indicators
Power & Printer Status
Buttons
Power & Supply Feed
Connectivity
USB-B & Ethernet
Memory
4GB Flash, 1GB SDRAM
Cutter
Automatic
Input Voltage
100-240 VAC
Software
LabelForge PRO (Arc Flash Module, label Editor Module, GHS Module, NFPA Module, Pipe Marking Module) & PDF Viewer
Operation Temperature
41°F to 104°F (5°C to 40°C)
Operation Humidity
30-85%, non-condensing
Ribbon Supply Capacity
361' (max. length)
Warranty
5 years
Description
Qty. SKU Description
1 DLBRONCOMAX DuraLabel Bronco Max Industrial Label Printer
1 T0203-7ON 2”x3” Warning Outdoor Die Cut Labels – 500 labels/roll
1 T0304-7ON 3”x4” Warning Outdoor Die Cut Labels – 250 labels/roll
1 T1-104 1"x70' Red Reflective Vinyl Tape
1 2-T1-3010 1"x280' Premium Red Vinyl Tape
1 2-T1-3009 1"x280' Premium Orange Vinyl Tape
1 T2-3010 2"x140' Premium Red Vinyl Tape
1 T2-3009 2"x140' Premium Orange Vinyl Tape
2 M431110 4"x361' Black Premium Ribbon
2 M431111 4"x361' White Premium Ribbon
