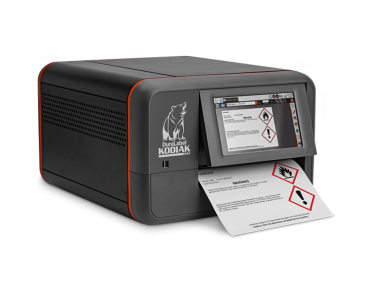

DuraLabel Kodiak Industrial Label Printer
2284-HW-DUR-018
Overview
There’s no job too big or too small for Kodiak. This large-format multicolor printer makes it easy to create high-quality signs of all sizes all in one system. Print onto 4’’ - 10’’ wide supply and lengths up to 8 feet long for endless possibilities.
| Dimensions | 17.4' W x 11.8" T x 19.5" D |
| Weight | 42 lbs (20 kg) |
| Print technology | Thermal Transfer |
| Resolution | 300 dpi |
| Print speed | 2" per second |
| Print width | 8.4" |
| Maximum print length | 100" |
| Indicators | Power, Printer Status, Supply Status, Battery Status |
| Buttons | Print, X (Cancel), ? (Help) |
| Connectivity | USB 2.0 (front: 2x USB-A, back: 2x USB-A, 1x USB-B), Ethernet, Wi-Fi USB Adapter |
| Display | Touchscreen 9" (diagonal) |
| Memory | 2 GB internal storage available; 4 GB external USB flash drive |
| Cutter | Automatic cut off |
| Software | LabelForge PRO, Arc Flash Design Module, Label Editor Module, GHS Module, NFPA Module, Pipe Marking Module, PDF Viewer, Video Player |
| Input voltage | 100-240 VAC (50-60 Hz), 8A |
| Operation temperature | 50°F - 104°F (10°C - 40°C) |
| Operation humidity | 30% - 85%, non-condensing |
| Storage temperature | -4°F - 140°F (-20°C - 60°C) |
| Ventilation | Free air movement |
| Environmental compliance | WEEE, CE, FCC, IC |
| Label stock type | Continuous, Black Mark, or Die-Cut |
| Label stock width | 4"–10" |
| Ribbon supply type | Premium Resin |
| Ribbon supply width | 8.66" |
| Ribbon supply capacity | 361' |
| Label stock capacity | 50' |
It’s perfect for GHS/HazCom 2012 chemical labels, OSHA/ANSI signs with headers, and wayfinding. Online pricing and special offers only available to customers in North America. Please contact your Account Manager or customer service for international pricing.
Kodiak is set to function straight from the box, no network required. Create and print labels anywhere with just a power source, thanks to the wireless keyboard, vibrant 22.9cm touchscreen, stylus, and integrated label software. Diversify your labeling with over 30 varieties of single and multi-hued supplies tailored for diverse industries and settings. Minimize downtime and enhance productivity by easily switching ribbon colors. With LabelForge PRO, craft standardized labels that align with regulatory standards using pre-designed templates or design from the ground up. Rest assured, all DuraLabel printers come with a five-year warranty against defects and malfunctions
