DuraLabel Toro Max & Kodiak Max Arc Flash Kit
-
NG # 2277-HW-DUR-011
-
MF # DLTMKM-ARCO
Manufactured by:
Elevate your electrical safety standards with the DuraLabel Toro Max Kodiak Max Arc Flash Kit. Designed for NFPA 70E and NEC compliance, this comprehensive arc flash kit comes with everything needed to produce high-quality, durable arc flash signs and labels of any size. The kit includes two powerful printing systems and an expanded selection of industrial labels that withstand harsh jobsite conditions.
Specification
Specification Size
Toro Max: 13.5"(W) x 10.25" (D) x 8.5"(H)
Kodiak Max: 17.4"(W) x 19.5"(D) x 11.8"(H)
Weight
Toro Max: 12.5 lbs (5.67 kg)
Kodiak Max: 43.4 lbs (19.7 kg)
Print technology
Toro Max & Kodiak Max: Thermal Transfer
Resolution
Toro Max & Kodiak Max: 300 DPI
Print Speed
Toro Max: Up to 3 inches per second
Kodiak Max: 2 inches per second
Print Width
Toro Max: 0.5" to 4.0"
Kodiak Max: 4.0" to 10.0"
Maximum Print Length
Toro Max: 120"
Kodiak Max: 100"
Indicators
Toro Max: Power, Printer Status, Supply Status, Battery Status
Kodiak Max: Power, Printer Status, Supply Status
Buttons
Toro Max: Power, Supply Feed, Keyboard Release, Screen Release, and Battery Release
Kodiak Max: None
Connectivity
Toro Max: USB 2.0 (4x USB-A, 1x USB-B), and Ethernet
Kodiak Max: USB 2.0 (front 2x USB-A, back 2x USB-A, 1x USB-B), Ethernet, and Wi-Fi
Display
Toro Max & Kodiak Max: 9" Capacitive Touchscreen
Memory
Toro Max: 4 GB Flash, 1 GB SDRAM
Kodiak Max: 4 GB Flash, 2 GB SDRAM
Cutter
Toro Max & Kodiak Max: Automatic
Input Voltage
Toro Max & Kodiak Max: 100-240 VAC
Software
Toro Max and Kodiak Max: LabelForge PRO (Arc Flash, Label Editor, GHS, NFPA, Pipe Marking modules) & PDF Viewer
Battery type
Toro Max: Li-Ion (sold separately)
Kodiak Max: N/A
Operation Temperature
Toro Max: 41°F to 104°F (5°C to 40°C)
Kodiak Max: 50°F to 104°F (10°C to 40°C)
Operation Humidity
Toro Max & Kodiak Max: 30-85%, non-condensing
Storage Temperature
Toro Max: -4°F to 122°F (-20°C to 50°C)
Kodiak Max: -4°F to 140°F (-20°C to 60°C)
Storage Humidity
Toro Max & Kodiak Max: 10-90%, non-condensing
Ribbon Supply Capacity
Toro Max & Kodiak Max: 361'
Warranty
Toro Max & Kodiak Max: 5 years
Environmental Compliance
Toro Max & Kodiak Max: WEEE, CE, FCC, IC
Description

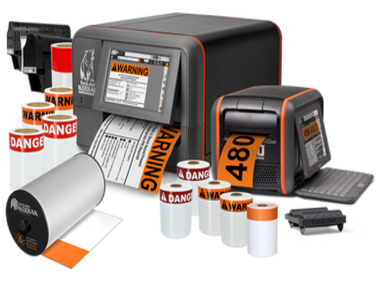

Qty. Description 1 DuraLabel Kodiak Max Printer—software included 1 DuraLabel Toro Max Printer—software included 2 6" x 9" Orange WARNING Outdoor Arc Flash, Health & Safety Labels (60 labels/roll) 2 6" x 9" Red DANGER Outdoor Arc Flash, Health & Safety Labels (60 labels/roll) 1 9" x 50' Orange Stripe Arc Flash/OSHA Two-Color Vinyl Tape (2.5" stripe) 1 9" x 50' Red Stripe Arc Flash/OSHA Two-Color Vinyl Tape (2.5" stripe) 1 8.6" x 361' Black Premium Ribbon 1 8.6" x 361' White Premium Ribbon 2 4" x 6" Orange WARNING Outdoor Arc Flash, Health & Safety Labels (200 labels/roll) 2 4" x 6" Red DANGER Outdoor Arc Flash, Health & Safety Labels (200 labels/roll) 1 4" x 70' Orange Stripe Arc Flash/OSHA Two-Color Vinyl Tape (1" stripe) 1 4" x 361' Black Premium Ribbon
