DuraLabel Toro Max Solar Panel Kit
2280-HW-DUR-014
DLTM-SOLAR
Overview

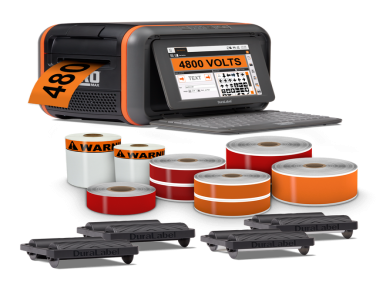

Elevate your safety standards with the Toro Max Solar Panel Marking Kit. Designed for durability and jobsite performance, this kit helps you craft solar-specific warning labels and safety signs with ease. Indicate disconnection points, shock hazards, current, voltage, arc flash, and comply with NEC article 690 for photovoltaic systems.
Specification Size
13.5"(W) x 10.25"(D) x 8.5"(H)
Weight
12.5 lbs (5.67 kg)
Print technology
Thermal Transfer
Resolution
300 DPI
Print Speed
Up to 3" per second
Print Width
0.5" - 4.0"
Maximum Print Length
120"
Indicators
Power, Printer Status, Supply Status, Battery Status
Buttons
Power, Supply Feed, Keyboard Release, Screen Release, Battery Release
Connectivity
USB 2.0 (4x USB-A, 1X USB-B), Ethernet
Display
9" Capacitive Touchscreen
Memory
4GB Flash, 1GB SDRAM
Cutter
Automatic
Input Voltage
100-240 VAC
Software
LabelForge PRO (Arc Flash Module, label Editor Module, GHS Module, NFPA Module, Pipe Marking Module) & PDF Viewer
Battery type
Li-Ion (sold separately)
Operation Temperature
41°F to 104°F (5°C to 40°C)
Operation Humidity
30-85%, non-condensing
Ribbon Supply Capacity
361' (max. length)
Warranty
5 years
| Qty. | SKU | Description |
|---|---|---|
| 1 | DLTOROMAX | DuraLabel Toro Max Industrial Label Printer |
| 1 | T0203-7ON | 2”x3” Warning Outdoor Die Cut Labels – 500 labels/roll |
| 1 | T0304-7ON | 3”x4” Warning Outdoor Die Cut Labels – 250 labels/roll |
| 1 | T1-104 | 1"x70' Red Reflective Vinyl Tape |
| 1 | 2-T1-3010 | 1"x280' Premium Red Vinyl Tape |
| 1 | 2-T1-3009 | 1"x280' Premium Orange Vinyl Tape |
| 1 | T2-3010 | 2"x140' Premium Red Vinyl Tape |
| 1 | T2-3009 | 2"x140' Premium Orange Vinyl Tape |
| 2 | M431110 | 4"x361' Black Premium Ribbon |
| 2 | M431111 | 4"x361' White Premium Ribbon |
