Series AT-2000 ATEX/IECEx Approved Magnehelic® Differential Pressure Gages

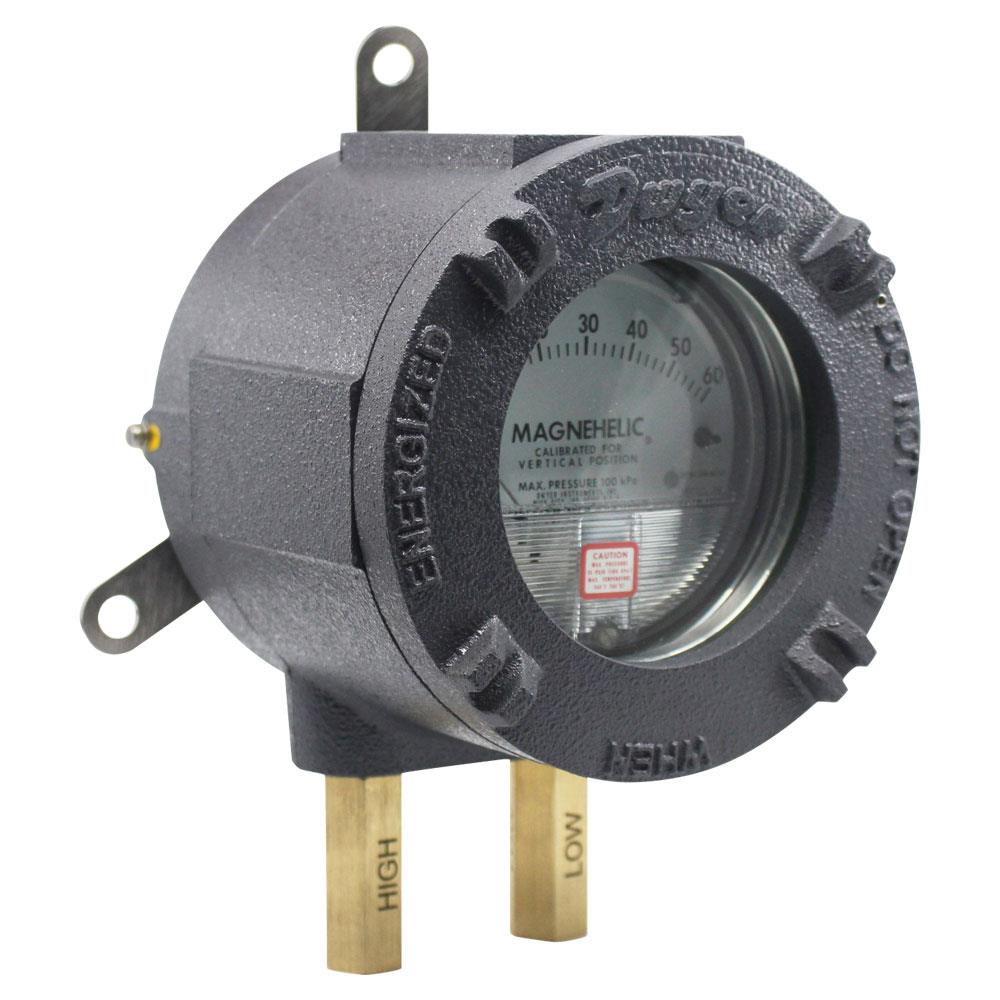

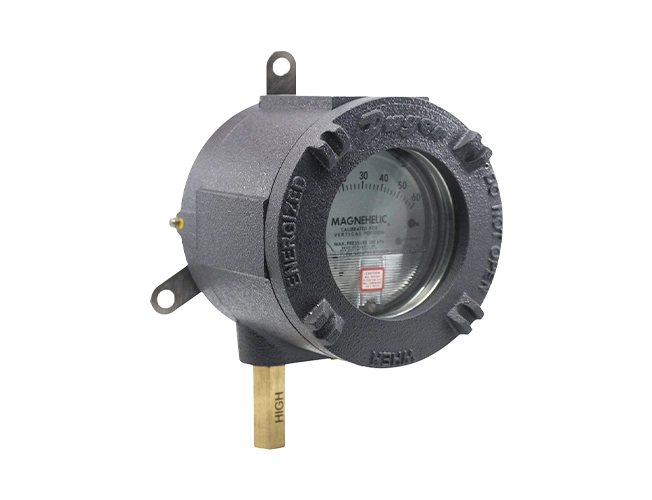

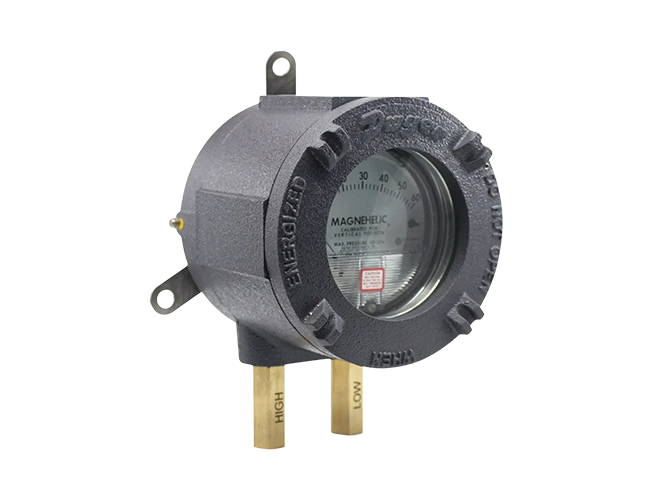

Magnehelic® Gage in Flame-Proof ATEX/IECEx Enclosure
Specification
Service Air and non-combustible, compatible gases. Wetted Materials Consult factory. Magnehelic® Housing Die cast aluminum case & bezel with acrylic cover; Exterior finish is coated gray to withstand 168 hour salt spray corrosion test Housing Material Aluminum Finishing Texture epoxy coat RAL7015 Accuracy ±2% of FS (±3% on -0, -100PA, -125PA, -10MM and ±4% on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C) Pressure Limits See pressure limit chart on catalog page Temperature Limits 20 to 140°F (-6.67 to 60°C); Low temperature option: -20°F (-28.8°C) (Note: Product temperature limits are less than case limits) Mounting Orientation Diaphragm in vertical position Enclosure Rating IP66. Process Connections 1/8" NPT female brass (SS optional) Weight 10.5 lb (4.8 kg) ATEX Certificate INERIS 21ATEX0033X IECEx Certificate IECEx INE 21.0064X Compliance ATEX: CE 0080 EX II 2G Ex db IIC T5, T6 Gb -60°C ≤Ta ≤+50°C (T6) -60°C ≤Ta ≤+60°C (T5) II 2D Ex tb IIIC T75 °C Db;
IECEx: Ex db IIC T5, T6 Gb -60°C ≤Ta ≤+50°C (T6) -60°C ≤Ta ≤+60°C (T5) Ex tb IIIC T75°C Db.
Description
The Series AT-2000 ATEX/IECEx Approved Magnehelic® Differential Pressure Gages combines the popular Magnehelic® line with a flameproof enclosure to extend usage to hazardous locations. This gage can indicate positive, negative or differential pressures and is accurate within 2%.
Important notes for installation:
• Cables must be fitted through 1/2" NPT cable gland or ATEX/IECEx conduit (not supplied with instrument).
• Make sure after cabling to close tight cover and cable gland, in order to maintain IP66 rating.
• Open cover only after de-energizing instrument.
