DWYER Differential pressure transmitter 3100D series
-
NG # 00308-HW-DWYER-009
Manufactured by:

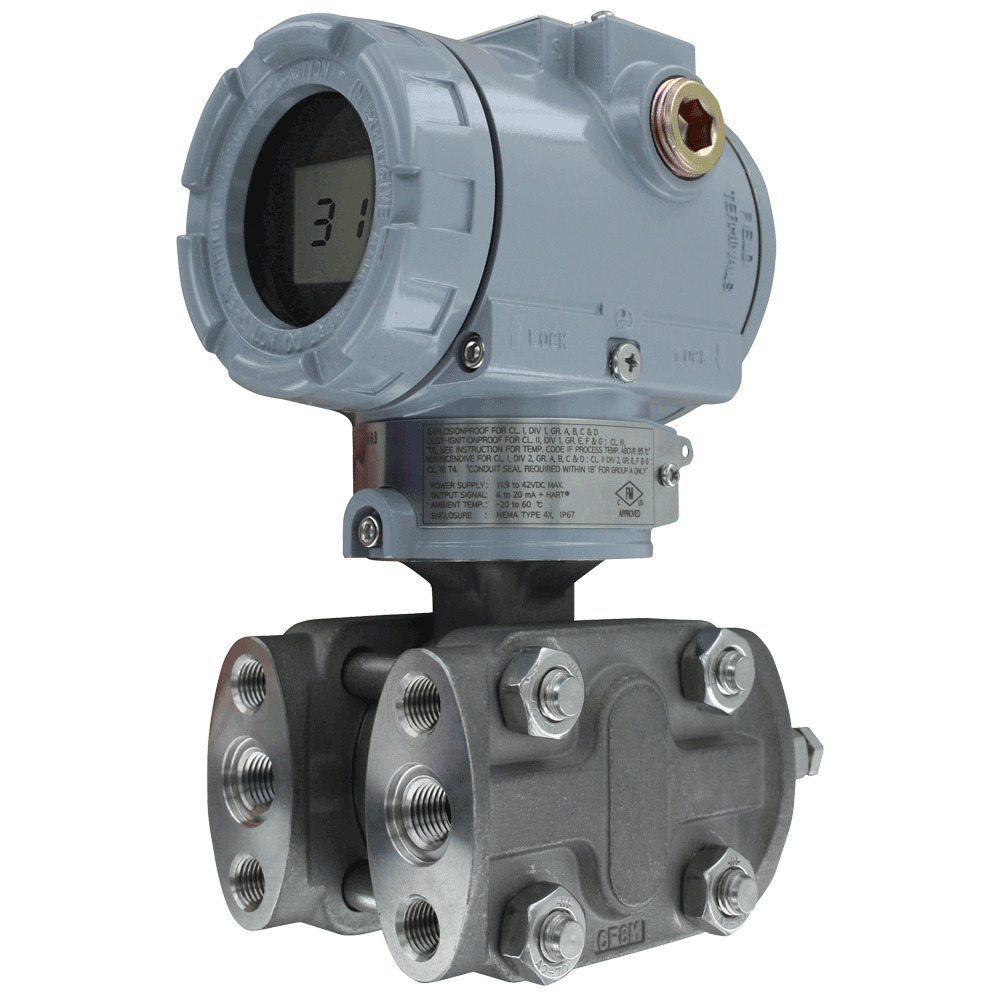

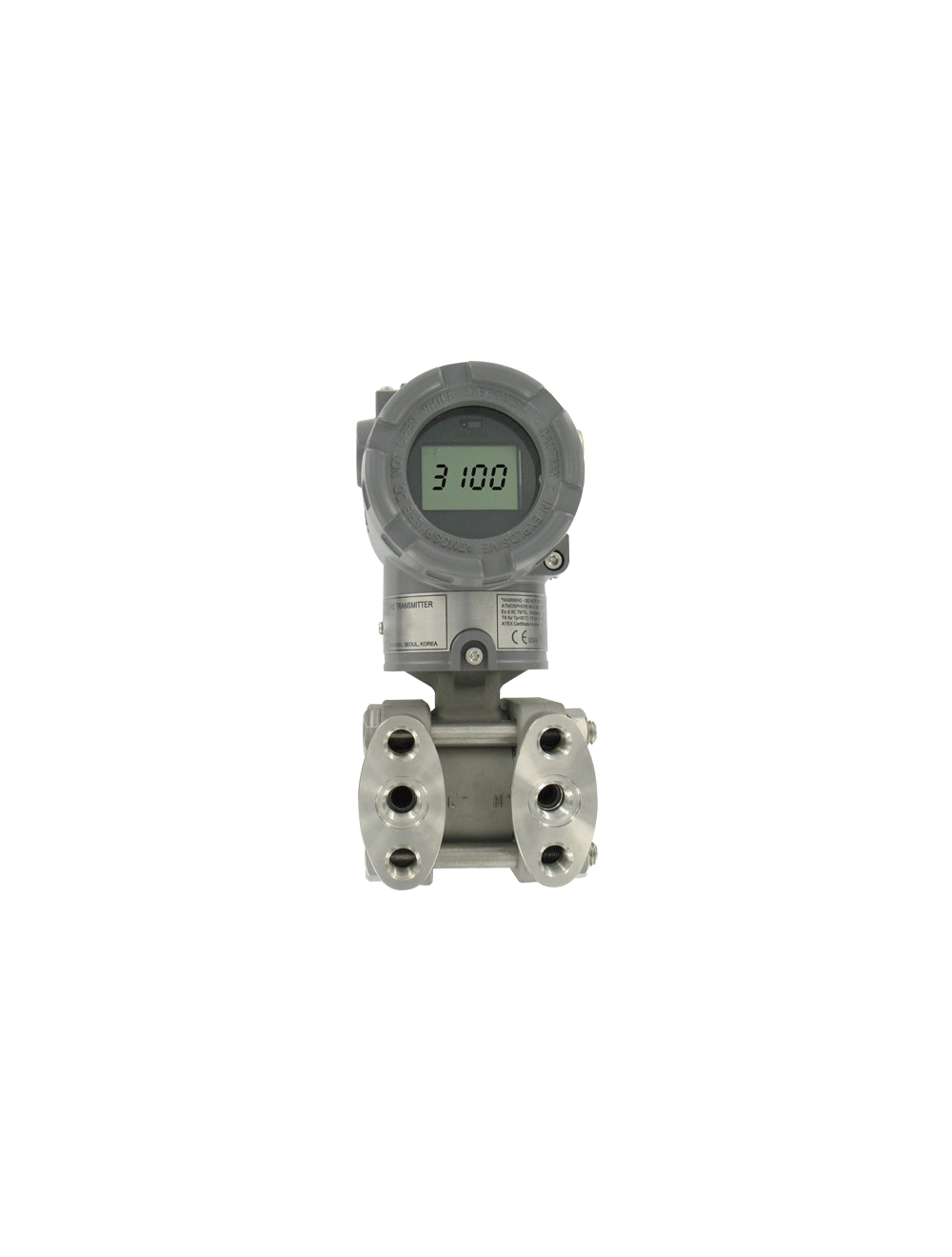

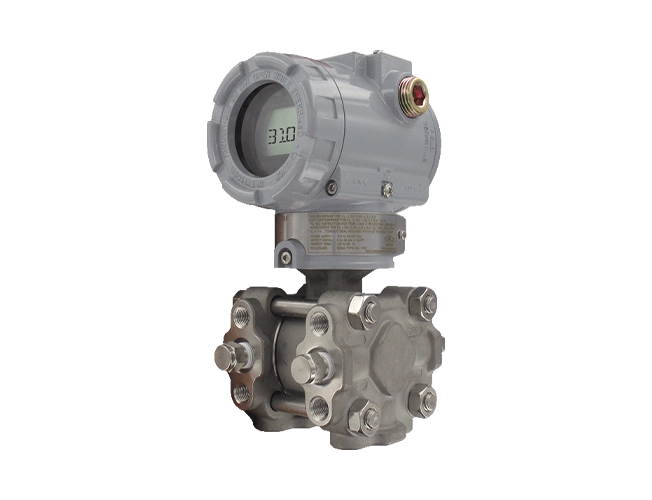

Series 3100D Explosion-proof Differential Pressure Transmitter HART® Communication, Push Button Configuration, Rangeability (100:1)
Specification
Service Compatible gases, steam, liquids or vapors. Wetted Materials 316L SS, fluoroelastomer. Accuracy ±0.075% FS (@ 20°C) Rangeability 100:1 turn down Stability ±0.125% FSO/yr Temperature Limits Process: -40 to 248°F (-40 to 120°C); Ambient (without LCD): -40 to 185°F (-40 to 85°C); Ambient (with LCD): -22 to 176°F (-30 to 80°C) Pressure Limits Max. pressure: Range: -14.5 to 2000 psi; Burst pressure: 10000 psi. Thermal Effect ±0.125% span/32°C Power Requirements 11.9 to 45 VDC Output Signal 4 to 20 mA/HART® Communication Response Time 0.12 seconds Damping Time 0.25-60 seconds Loop Resistance Operation: 0 to 1500 Ohm; HART® Communication: 250 to 500 Ohm Electrical Connection Two 1/2" female NPT conduit, screw terminal Process Connection 1/4" female NPT Display Optional 5 digit LCD Enclosure Rating NEMA 4X (IP66) and explosion-proof for Class I, Div I, Groups A, B, C and D Weight 8.6 lb (3.9 kg) Agency Approvals CE, FM.
Description
Mercoid® Series 3100D Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication. The Series 3100D is capable of being configured for differential pressure or level applications with the zero and span buttons. A field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3100D is FM or ATEX approved for use in hazardous (classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.
