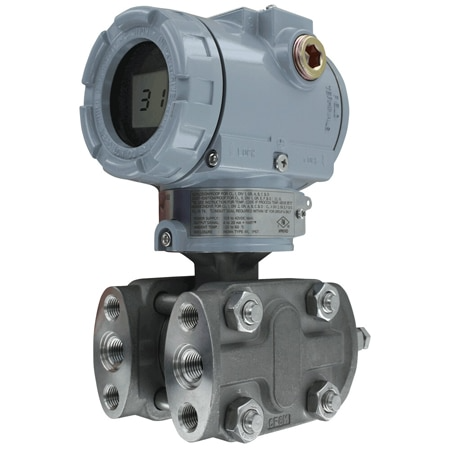

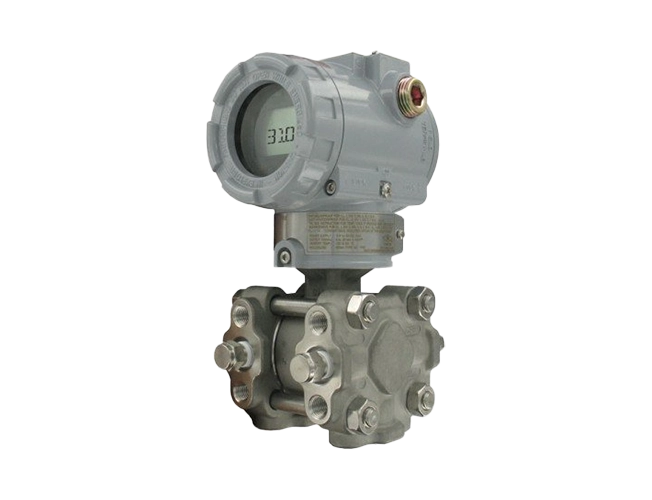

DWYER Smart differential pressure transmitter, range 0-150" w.c., with LCD display 3100D-3-FM-1-1-LCD
-
NG # 003016-HW-DWYER-017
Manufactured by:
Series 3100D Explosion-proof Differential Pressure Transmitter HART® Communication, Push Button Configuration, Rangeability
Specification
Brand DWYER Accuracy ± 0.075 % Accuracy Detail ± 0.075% FS (@ 20°C) Burst Pressure 10,000 psi Maximum Compliance CE, FM Damping Time 0.25 to 60 s Display Type LCD Electrical Connection 1/2 in NPT female Conduit with Screw Terminal block Electrical Output 4 to 20 mA, HART Enclosure Ratings Hazardous Location Rated, IP66, NEMA Type 4X Long Term Stability ± 0.125% FSO/year Loop Resistance Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω Materials, Wetted 316L Stainless Steel, Fluoroelastomer Media Compatibility Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam Number of Digits 5 Operating Temperature, Max 80 °C Operating Temperature, Min -30 °C Output Detail HART® Communication Output Signal Current, HART Pressure Type Differential Pressure, Max 150 inH₂O Pressure, Min 0 inH₂O Process Connection Size 1/4 in Process Connection Type NPT Female Process Temperature, Max 120 °C Process Temperature, Min -40 °C Proof Pressure Up to 2000 psi Response Time 0.12 s Supply Power Type DC Supply Voltage 11.9 to 45 Vdc Thermal Effects ± 0.125% span/32°C Turndown Ratio 100:1 Weight 3.9 kg
Description
Mercoid® Series 3100D Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication. The Series 3100D is capable of being configured for differential pressure or level applications with the zero and span buttons. A field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3100D is FM or ATEX approved for use in hazardous (classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.
