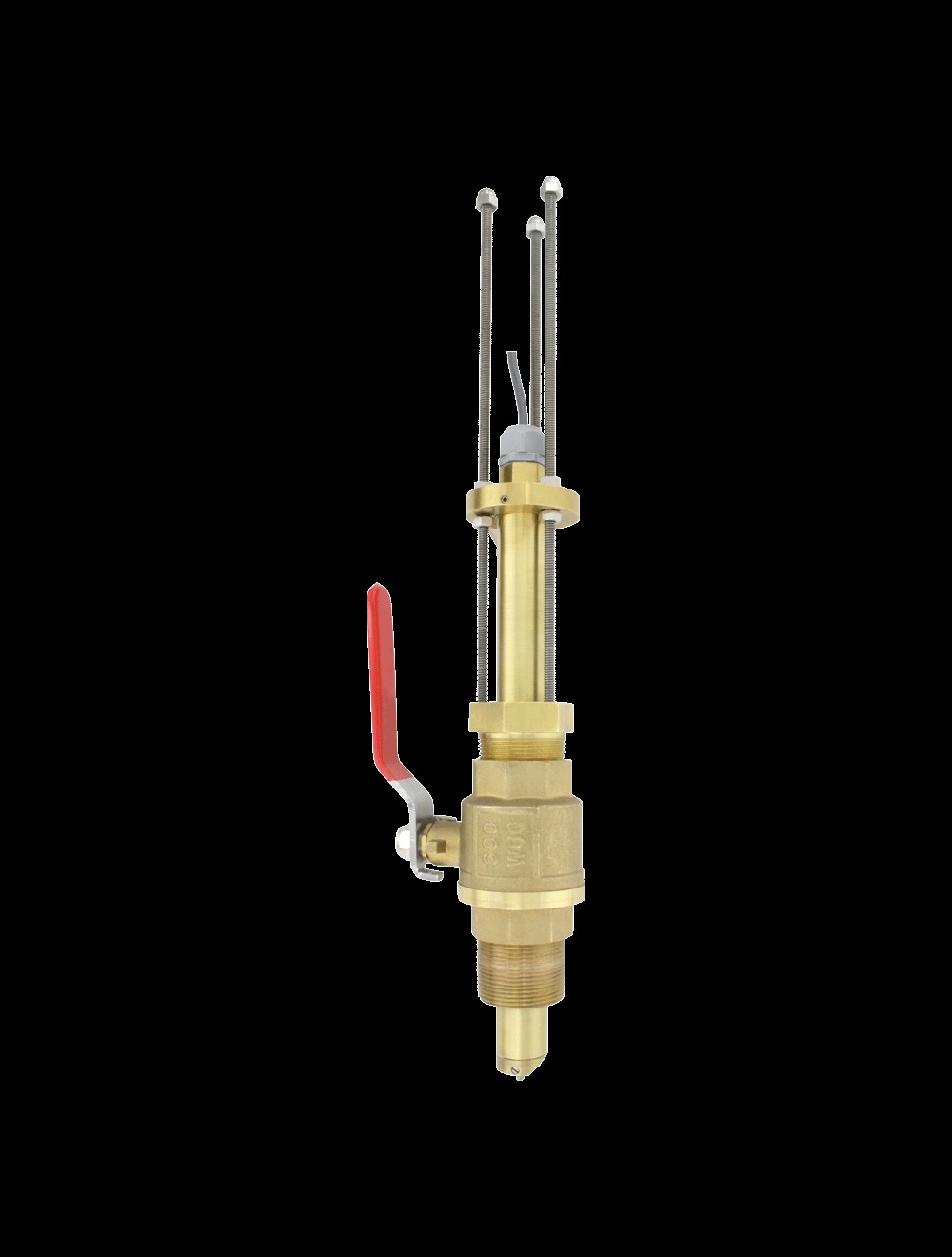

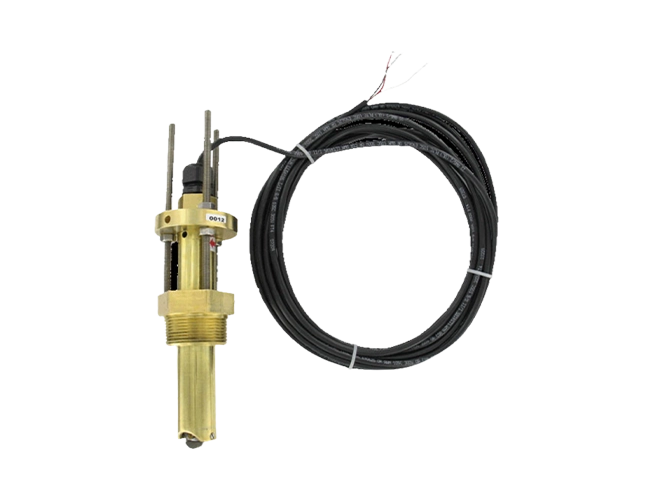

Dwyer Paddle flow sensor PFT series
-
NG # 00301-HW-DWYER-002
Manufactured by:
The Dwyer Paddlewheel Flow Sensor (PFT Series) provides accurate flow measurement for liquids in pipes. It is designed for easy installation and offers reliable performance in various industrial applications.
Specification
Service: Water-based fluids. Range: 1.2 to 25 ft/s (0.37 to 7.62 m/s).
Wetted Materials: Brass or 316 SS body; impeller: 316 SS; shaft: Tungsten carbide or 316 SS; bearing: PTFE. Linearity: ±1.0% of FS. Repeatability: ±0.5% of FS. Temperature Limits: -40 to 212°F (-40 to 100°C). Pressure Limits: 400 psig (27.6 bar) @ 100°F (37.8°C), 325 psig (22.4 bar) @ 212°F (100°C). Power Requirement: 10 to 35 VDC. Power Consumption: 40 mA (max.). Electrical Connection: 22 AWG shielded UL type PTLC rated 105°C, 20´ (6.1 m) long with cable gland. Housing Materials: Brass or 316 SS. Weight: 3 lb (1.36 kg).
Description
The Series PFT Paddlewheel Flow Sensor is designed to accurately monitor liquid flow rates in pipes ranging from 1-1/2 to 40˝. Available in both brass and 316 SS body options, this sensor offers versatile wetted material choices to suit various applications. It outputs either a frequency proportional pulsed signal or a 4 to 20 mA linear output. With bearings and shafts providing excellent wear protection, the PFT sensor ensures long-term reliability, even in applications with particulate matter. Its weatherproof and submersible design makes it suitable for irrigation applications, while its non-magnetic sensing technology enables low flow rate monitoring without concerns about magnetic material interference.
