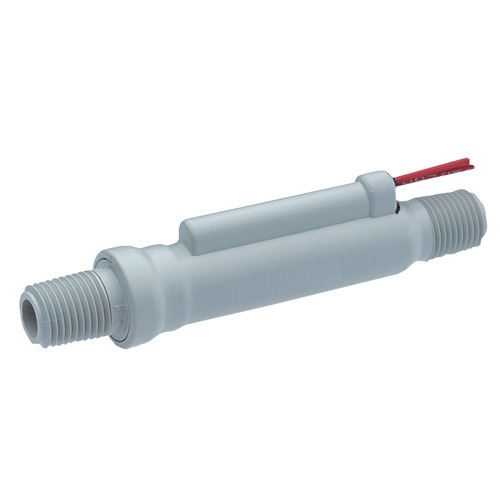

Dwyer Piston flow switch P2 series
-
NG # 00303-HW-DWYER-004
Manufactured by:
Ideal for Air and Post-Filtered Water Applications, Fixed Set Point, FDA Compliant.
Specification
Series P2 Flow Switch Category/Type Flow Service Compatible liquids or gases. Wetted Materials Housing: PPE & PS (polyphenylene ether and polystyrene); Piston: PPE & PS (polyphenylene ether and polystyrene) and epoxy; Spring and Stop Pin: 316 SS. Temperature Limits 0 to 212°F (-18 to 100°C). Pressure Limits 150 psi (10.3 bar) @ 70°F (21°C); 50 psi (3.4 bar) @ 212°F (100°C). Electrical Rating .17 A @ 120 VAC; .08 A @ 240 VAC; .13 A @ 120 VDC; .06 A @ 240 VDC. Electrical Connection 22 AWG; 18" (45.7 cm); PVC lead wires. Process Connection 1/4" male NPT. Mounting Orientation Any position. Set points shown are based on vertical; inlet down position. Weight 2 oz (.06 kg). Agency Approval CE.
Description
The compact Series P2 Flow Switch utilizes a piston-type design for both air and pure water applications. The switches have preset actuation points from 0.05 to 1.0 GPM for water and 25 CFH to 5 CFM for air. The piston design incorporates a hermetically sealed SPST magnetic reed switch. The P2 is comprised of PPE & PS (polyphenylene ether and polystyrene) housing and piston and 316 Stainless Steel spring and stop pin. All wetted parts are FDA compliant. Economical and superior design make this an excellent switch for pure water equipment, filter life monitoring, heat exchangers, and cooling applications.
