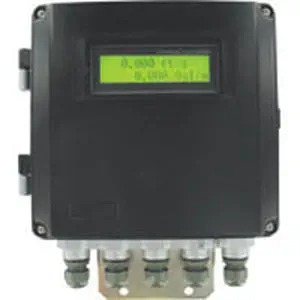

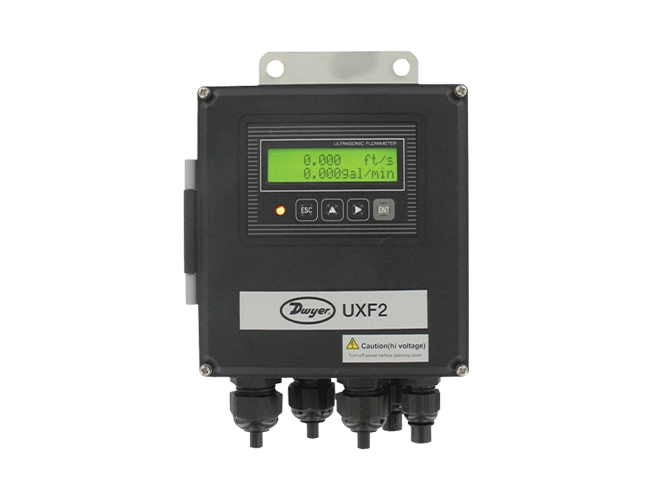

Dwyer ultrasonic flow meter UXF2 series
-
NG # 00300-HW-DWYER-001
Manufactured by:
Dwyer UXF2 Series Ultrasonic Flow Converters are paired with Series SX3 detectors in order to utilize the transit-time measuring method. Two ultrasonic sensors are mounted on the pipe exterior, and each transmits an ultrasonic pulse to the opposite sensor.
Specification
Min.: 0 °C Max.: 50 °CTechnology: ultrasonic Fluid: for liquids Installation: clamp-on Material: plastic Communication: RS485 Protection level: IP65 Other characteristics: compact Process temperature:
(32 °F)
(122 °F)
Description
The Series UFB Ultrasonic Flowmeter Set utilizes the transit-time difference for measuring flow rates in pipes non-invasively. This is the permanent model, allowing the user to mount the converter on a surface or pipe. The easy-to-use compact and lightweight design is intended for mechanical devices using ideally homogeneous liquids that contain no air pockets. The Series UFB comes with a sturdy IP65 rating, protecting it from dust and direct water contact. The Series UFB has 4 to 20 mA and pulse output capabilities.
