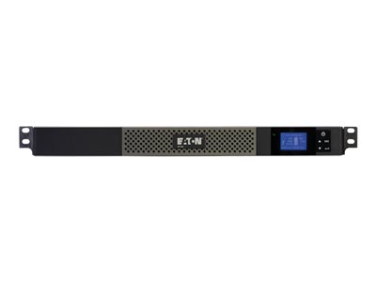

Eaton 5P 550 RACKMOUNT - UPS - 420 Watt - 550 VA

  • NG # 2504-HW-Eaton-011

  • MF # 5P550R

Manufactured by:

This seller generally responds in under 48 hours

Specification

General Information

Device Type: Uninterruptible Power Supply (UPS) - Rack-mountable

Rack Size: 1U

Load Rating: Small Workgroup Server

UPS Technology: Line Interactive

Electrical Specifications

Input Voltage: AC 120V

Input Frequency: 50/60 Hz (Auto-sensing)

Output Voltage: AC 120V ±5%, 50/60 Hz

Power Capacity: 550 VA / 420 Watts

Input Connector Type: 1 x NEMA 5-15

Output Connectors: 5 x NEMA 5-15

Surge Protection: Yes (Built-in Surge Suppression)

Battery & Power Management

Battery Technology: Advance Battery Management (ABM)

Battery Monitoring: LCD Display for Status and Alerts

Remote Functions: Remote ON/OFF Functionality

Connectivity & Expansion

Remote Management Interface: RS-232 Serial, USB

Interfaces:

1 x RS-232 Management Port

1 x USB Port

Expansion Slots:

Total: 1

Free: 1

Included Accessories

Rack Mounting Ears

USB Cable (External)

Serial Cable (External)

Integrated Power Cable

Rack Mounting Kit: Included

Dimensions & Weight

Width: 17.2 inches

Depth: 14.3 inches

Height: 1.7 inches

Weight: 17.79 lbs

Environmental & Compliance

Energy Efficiency: ENERGY STAR Certified

Features:

Advance Battery Management (ABM)

LCD Status Display

Remote Power Control

Warranty

Service & Support: Limited Warranty – 3 Years

Compatibility

Designed For:

Part Number: 744-A2217

Description

550VA/420W/120V Battery Backup for Network Closets and Small Data Centers



This 5P rack-mount line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P550R protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.



Reliable Battery Backup Keeps You Operational Through Power Outages



valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.



Optional Gigabit Network Interface Offers 24/7 Remote Access



The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.



NEMA 5-15R Outlets Protect Your Connected Components



Five managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Three outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

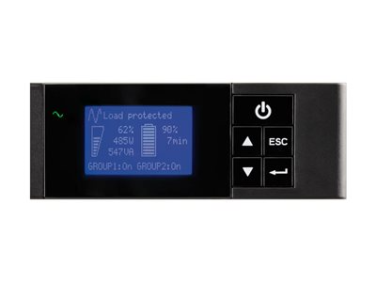

LCD Interface Keeps You Informed at a Glance



The five-button graphical LCD provides useful information about the UPS itself, load status,events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity.



Advanced Communications Ports Allow for Automatic Saves and Shutdowns



RS-232 and USB ports connect to a serial-enabled or USB-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connector permits emergency shutdown or remote restart of all connected equipment.



Easy Installation Options



You can mount the compact 5P550R in just 1U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. At just 14.3 inches deep, the UPS mounts in short-depth racks and other compact spaces. The six-foot power cord with NEMA 5-15P plug connects to a compatible AC outlet.
