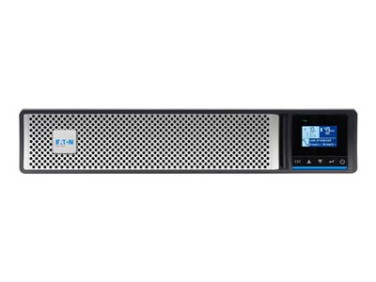

Eaton 5PX G2 - Netpack - UPS - 1440 Watt - 1440 VA - Network Card
-
NG # 2507-HW-Eaton-014
-
MF # 5PX1500RTNG2
Manufactured by:
Specification
General
Device Type: UPS – Rack-mountable / External
Form Factor: 2U
Power Device
UPS Technology: Line Interactive
Input Voltage: AC 120V
Input Frequency: 50/60 Hz (Auto-sensing)
Input Connector Type: 1 x NEMA 5-15P

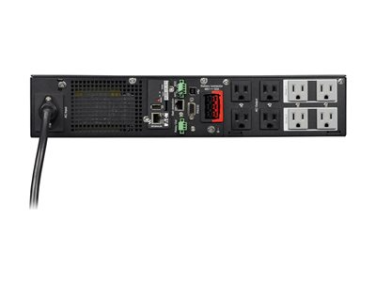

Output Connectors: 8 x NEMA 5-15R
Output Voltage: AC 120V 50/60 Hz
Power Capacity: 1440 Watt / 1440 VA
Output Waveform: Sinewave
Battery
Runtime:
Up to 5 minutes at full load
Up to 15 minutes at half load
Battery Type: Hot-swappable, user-replaceable
Battery Management: Advanced Battery Management (ABM)
Networking & Management
Remote Management Interfaces:
RS-232
USB
Ethernet 10/100/1000 (Gigabit)
Interfaces:
1 x RS-232 (RJ-45)
1 x USB Type B (4-pin)
1 x Gigabit Ethernet (RJ-45)
Expansion Slots:
1 total / 0 free
Physical Characteristics
Dimensions:
Width: 17.2 in
Depth: 17.6 in
Height: 3.4 in
Weight: 50.71 lbs
Included Accessories
Tower stand
Rack mounting kit
USB cable (external)
RS-232 cable (external)
Power cable (10 ft)
Features
Advanced Battery Management (ABM)
LCD Display
Hot-swappable batteries
Compliance & Sustainability
Standards:
2011/65/EU
EMC 2014/30/EU
LVD 2014/35/EU
RoHS3
EN 62040-1:2008+A1:2013
EN 62040-2:2006
EN/IEC 62040-2:2018
ENERGY STAR Certified: Yes
Warranty
Manufacturer Warranty: Limited – 3 Years
Compatibility
Designed For: Dell Part Number 744-A4801
Description
The Eaton 5PX G2 1440VA 1440W 120V Line-Interactive UPS provides reliable power protection for critical systems. Designed with a rack-mountable form factor, this UPS offers eight NEMA 5-15R outlets to connect various devices. It includes features such as hot-swappable batteries for ease of maintenance, an LCD display for clear status monitoring, and Advance Battery Management (ABM) technology to enhance battery lifetime and performance. The device is compliant with several environmental standards and ensures efficient energy usage, meeting ENERGY STAR requirements.
