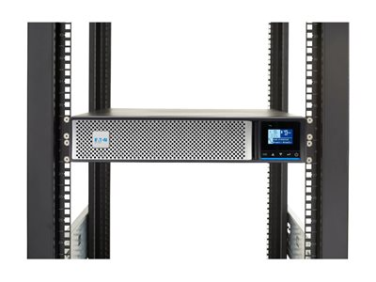

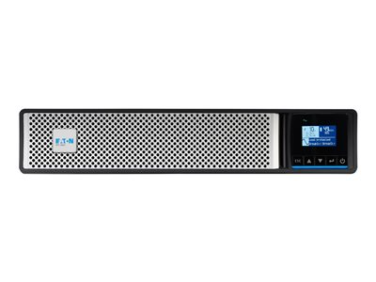

Eaton 5PX G2 - Netpack - UPS - 3000 Watt - 3000 VA
-
NG # 2496-HW-Eaton-003
-
MF # 5PX3000RTNG2
Manufactured by:
Specification
General
Device Type: UPS (Uninterruptible Power Supply) – Rack-mountable / External
Form Factor: 2U Rack Height
Power Device
UPS Technology: Line-Interactive
Input Voltage: AC 120 V
Frequency (Input/Output): 50/60 Hz
Input Connector Type: 1 × NEMA L5-30P
Output Connector Types:
1 × NEMA L5-30R
6 × NEMA 5-20R
Output Voltage: AC 120 V (50/60 Hz)
Power Capacity: 3000 Watt / 3000 VA
Output Waveform: Pure Sine Wave
Battery
Runtime:
Up to 3 minutes at full load
Up to 9 minutes at half load
Battery Features: Hot-swappable, Advance Battery Management (ABM)
Networking & Management
Remote Management Interfaces:
RS-232
USB
Ethernet (10/100/1000 Mbps)
Expansion Slots: 1 total / 0 free
Connectivity Interfaces
1 × RS-232 (RJ-45)
1 × USB Type B (4-pin)
1 × Gigabit Ethernet (RJ-45)
Miscellaneous
Included Accessories:
Tower stand
USB cable (external)
RS-232 cable (external)
10 ft power cable
Rack mounting kit
Display: LCD
Features: Advance Battery Management (ABM), LCD screen, hot-swappable batteries
Compliance & Standards:
RoHS 3
ENERGY STAR certified
2011/65/EU, EMC 2014/30/EU, LVD 2014/35/EU
EN 62040-1:2008+A1:2013
EN 62040-2:2006
EN/IEC 62040-2:2018
Dimensions & Weight
Width: 17.2 in
Depth: 23.7 in
Height: 3.4 in
Weight: 74.52 lbs
Warranty
Service & Support: 3-Year Limited Warranty
Compatibility
Designed For: Part Number 744-A4803
Description
The Eaton 5PX G2 3000VA 3000W 120V Line-Interactive UPS offers reliable power protection for critical electronic devices. Engineered to support a high load capacity of 3000 watts, this UPS ensures seamless operation with sinewave output. Designed with a robust management interface, it provides connectivity through Gigabit Ethernet, RS-232, and USB, making remote management efficient and user-friendly. This system includes an LCD display for monitoring real-time performance, along with hot-swappable batteries that ensure quick replacement without downtime. The compliant design of the 5PX G2 adheres to several environmental standards, including ENERGY STAR, showcasing its energy efficiency while delivering powerful backup solutions.
