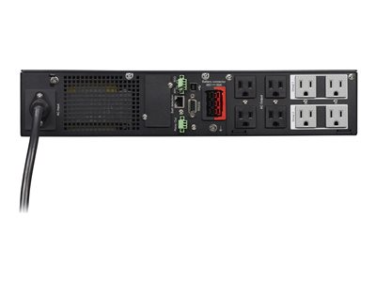

Eaton 5PX G2 - UPS - 1440 Watt - 1440 VA
-
NG # 2505-HW-Eaton-012
-
MF # 5PX1500RTG2
Manufactured by:
Specification
General Information
Device Type: UPS – Rack-mountable / External
Rack Height: 2U
Color: Black, Silver
Power Device
UPS Technology: Line Interactive
Input Voltage: AC 120 V
Input Voltage Range: AC 100 – 125 V
Frequency (Provided/Required): 50/60 Hz
Input Connector: 1 × NEMA 5-15P
Output Voltage: AC 120 V (50/60 Hz)
Power Output Connectors: 8 × NEMA 5-15R
Power Capacity: 1440 VA / 1440 Watts
Output Waveform: Sinewave
Surge Suppression: Yes
Surge Energy Rating: 380 Joules
Efficiency: 98%
Battery
Battery Type: Lead Acid
Features: Sealed, Maintenance-Free, Valve-Regulated
Run Time:
Up to 5 minutes at full load
Up to 15 minutes at half load
Battery Management: Advance Battery Management (ABM)
Battery Replacement: Hot-Swappable
Startup Mode: Cold-Start Capable
Networking & Management
Remote Management Interfaces:
RS-232 (RJ-45)
USB (4-pin Type B)
Expansion Slots: 1 × Expansion Slot (1 free)
Physical Characteristics
Dimensions (W × D × H): 17.2 × 17.6 × 3.4 in
Weight: 50.71 lbs
Rack Mounting Kit: Included
Included Accessories:
Tower Stand
USB Cable (external)
RS-232 Cable (external)
10 ft Power Cable
Environmental Parameters
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Operating Humidity: 20% – 90% (Non-condensing)
Certifications & Compliance
Standards: cULus, NOM, RoHS, REACH, IEC 62040-1
Sustainability: ENERGY STAR® Certified
Warranty
Service & Support: 3-Year Limited Warranty
Description
The Eaton 5PX G2 1440VA 120V Line-Interactive UPS is designed to ensure reliable power protection and battery backup for critical devices. With a power capacity of 1440 watts and eight NEMA 5-15R output connectors, this UPS supports multiple connected devices, securing against power surges and interruptions. It features a maintenance-free, valve-regulated, sealed lead acid battery that provides longevity and minimal upkeep, while also delivering runtime capabilities of up to 15 minutes at half load.
Equipped with an LCD display for real-time monitoring, the Eaton 5PX G2 includes advanced battery management technology to optimize battery health and performance. The rack-mountable design allows for efficient space utilization, making it a perfect fit for various environments. Complied with multiple standards including ENERGY STAR, RoHS, and cULus, this UPS provides protection and supports energy conservation efforts.
