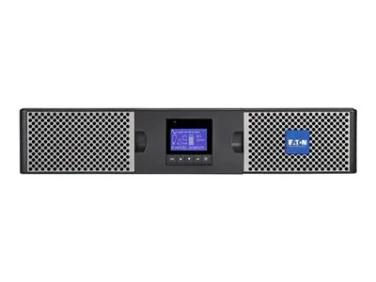

Eaton 9PX 9PX1500RT-L - UPS - 1350 Watt - 1500 VA
2525-HW-Eaton-031
Overview
This 9PX rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. Ideal for locations that are difficult to access or infrequently maintained, the 9PX1500RT-L is an efficient "set it and forget it" solution. It's ideal power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black, silver |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 100/110/120/125 V |
| Input Voltage Range | AC 60 - 144 V |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Output Voltage | AC 100/110/120/125 V ± 2% |
| Power Capacity | 1350 Watt / 1500 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 190 Joules |
| Max Spike Voltage | 510 V |
| Efficiency | 90% |
| Power Factor (PF) | 0.99 |
| Total Harmonic Distortion (THD) | 5 % |
| Battery | |
| Type | Expandable |
| Technology | Lithium ion |
| Transfer Time | 0 ms |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x remote power (on/off) - terminal block ¦ 1 x relay output - terminal block |
| Expansion Slots | 1 (total) / 1 (free) x Mini Slot |
| Miscellaneous | |

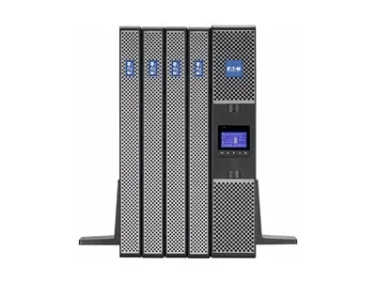

| Included Accessories | Tower stand, 4-post rail kit |
| Cables Included | Serial cable - external - 6 ft ¦ USB cable - external - 6 ft ¦ Power cable 8 ft |
| Rack Mounting Kit | Included |

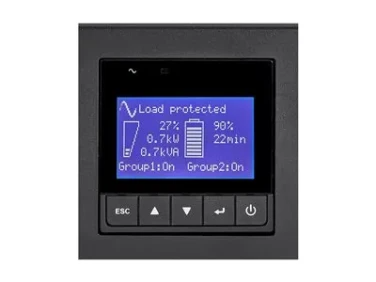

| Features | Rotatable LCD panel, Advance Battery Management (ABM), hot-swappable batteries, internal bypass, cold-start function, LED indicators, double conversion |
| Compliant Standards | IEC 62040-2, CISPR 22 Class B, FCC Part 15 B, VCCI Class B, NOM, cULus, RoHS |
| Software / System Requirements | |
| Software Included | Intelligent Power Software Suite |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 96% (non-condensing) |
| Sound Emission | 40 dB |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 17.7 in |
| Height | 3.4 in |
| Compatibility Information | |
| Designed For | P/N: 9PXEBM48RT-L |
The hot-swappable maintenance-free lithium-ion battery modules have a service life of 8 to 10 years. They allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. These lithium iron phosphate (LFP) batteries provide 80 to 120 percent more runtime at full load than equivalent lead-acid UPS systems while weighing up to 40 percent less, reducing the overall UPS weight.
