General

Device Type: UPS – Rack-mountable / External

Rack Height: 2U

Color: Black, Silver

Power Device

UPS Technology: On-line (Double Conversion)

Input Voltage: AC 100/110/120/125 V

Input Voltage Range: AC 100 - 144 V / 60 - 144 V

Frequency Required: 50/60 Hz Auto-sensing

Input Connector: 1 × NEMA 5-15

Output Connectors: 8 × NEMA 5-15

Output Voltage: AC 100/110/120/125 V ± 1%

Power Capacity: 1350 Watts / 1500 VA

Efficiency: Up to 90%

Power Factor: 0.99

Total Harmonic Distortion (THD): ≤ 3%

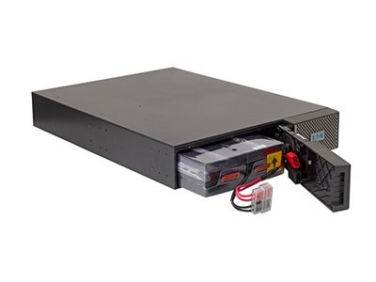

Battery

Battery Type: Expandable

Battery Technology: Lead Acid, Sealed & Maintenance-Free

Battery Features: Advance Battery Management (ABM), Cold Start, Auto Self-Test, REPO Support

Networking & Remote Management

Interfaces:

1 × RS-232 (RJ-45)

1 × USB

1 × Ethernet (RJ-45)

Remote Management Interface: Ethernet, RS-232, USB

Expansion / Connectivity

Expansion Slots: 1 (Total) / 0 (Free) Expansion Slot

Included Accessories:

Tower Stand

4-Post Rail Kit

6 ft Serial Cable

USB Cable

8 ft Integrated Power Cable

Software & Compliance

Software Included: Eaton Intelligent Power Software Suite

Compliant Standards:

ANSI C62.41

CISPR 22

IEC 62040-2

RoHS

VCCI Class B

FCC Part 15 Class B

ENERGY STAR Certified: Yes

Environmental

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Sound Emission: ≤ 40 dB

Dimensions & Weight

Width: 17.3 in (440 mm)

Depth: 17.7 in (450 mm)

Height: 3.4 in (86 mm)

Weight: 42.55 lbs (19.3 kg)

Warranty

Manufacturer Warranty: 2-Year Limited Warranty

Compatibility

Designed For:

P/N: 744-A3297

P/N: 9PXEBM48RT
