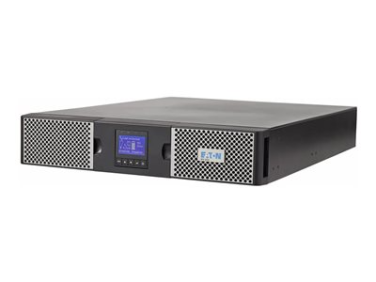

General

Device Type: UPS – Rack-mountable / External

Rack Height: 2U

Color: Black and Silver

Power Device

UPS Technology: On-line (Double Conversion)

Input Voltage: AC 100/110/120/125 V

Input Voltage Range: AC 100 – 144 V / 60 – 144 V

Frequency Required: 50/60 Hz (auto-sensing)

Input Connector Type: 1 × NEMA L5-30P

Output Connector Types:

6 × NEMA 5-20R

1 × NEMA L5-30

Output Voltage: AC 100/110/120/125 V ± 1%

Power Capacity: 2700 Watts / 3000 VA

Efficiency: Up to 91%

Power Factor: 0.99

Total Harmonic Distortion (THD): < 3%

Circuit Protection: Circuit breaker

Battery

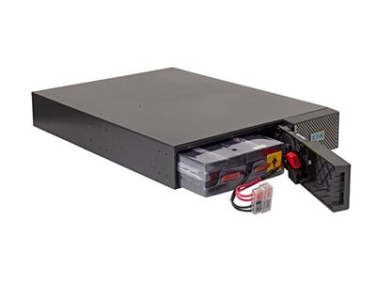

Battery Technology: Sealed Lead-Acid (Maintenance-Free)

Run Time:

114 min @ 400W

20 min @ 1000W

12 min @ 1500W

9 min @ 1800W

5 min @ 2700W

Battery Management: Advanced Battery Management (ABM)

Battery Features: Automatic self-test, cold-start capable

Networking & Management

Remote Management Interfaces: Ethernet, RS-232, USB

Expansion Slots: 1 (total), 0 (free) – for optional modules

Included Software: Eaton Intelligent Power Protector

Remote Monitoring Features: LCD display, LED indicators, Remote Emergency Power Off (REPO)

Connectivity

Ports:

1 × RS-232

1 × USB

1 × Ethernet (RJ-45)

Miscellaneous

Included Accessories:

Tower stand

Rack mounting rails

8 ft integrated power cable

Serial cable

USB cable

Mounting Kit: Included

Certifications & Standards:
ANSI C62.41, NOM, CISPR 22, IEC 62040-2, RoHS, cULus, VCCI Class B, FCC Part 15 Class B

Environmental Compliance: ENERGY STAR Certified

Warranty

Manufacturer Warranty: 2-Year Limited Warranty

Environmental Parameters

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Sound Emission: 47 dB

Physical Dimensions

Width: 17.3 in (439 mm)

Depth: 23.8 in (605 mm)

Height: 3.4 in (86 mm)

Weight: 63.05 lbs (28.6 kg)

Compatibility

Designed For:

P/N: 744-A3122

P/N: 9PXEBM72RT
