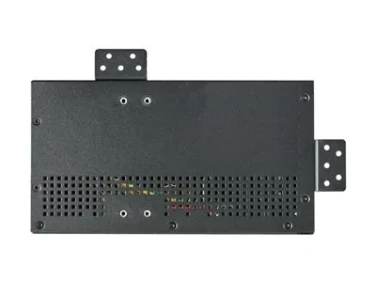

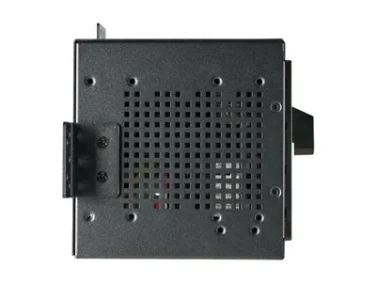

Eaton 9PX G2 MBP6KIECG2 - bypass switch - 6000 Watt - 6000 VA
TF:
2515-HW-Eaton-022
Overview
Compatible with Eaton 9PX6KIECG2 9PX G2 UPS System
The MBP6KIECG2 works with Eaton's 9PX6KIECG2 UPS system. The bypass lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.
| General | |
| Device Type | Bypass switch - rack-mountable / wall mountable |
| Height (Rack Units) | 0U |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 1 x hardwire, power NEMA L6-30P |
| Power Output Connectors Details | 2 x power IEC 60320 C13 ¦ 3 x power IEC 60320 C39 |
| Output Voltage | AC 208/220/230/240 V 50/60 Hz |
| Power Capacity | 6000 Watt / 6000 VA |
| Output Waveform | Sinewave |
| Miscellaneous | |
| Included Accessories | 2 cable glands, mounting hardware |
| Rack Mounting Kit | Included |
| Compliant Standards | cUL Listed, Mexico NOM, RoHS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 9.4 in |
| Depth | 4.9 in |
| Height | 5.1 in |
| Compatibility Information | |
| Designed For | P/N: 9PX6KIECG2 |
Versatile Connection and Installation Options

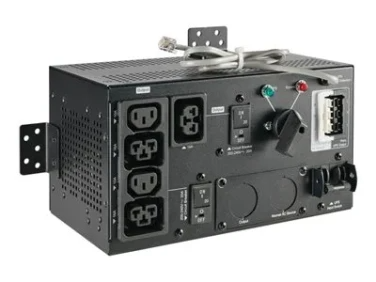

The MBP6KIECG2 features hardwired input, as well as two C13 and three C39 outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.
