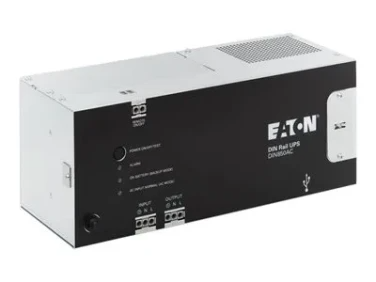

Eaton DIN850AC - UPS - industrial, hardwire input/output - 510 Watt - 850 VA - VRLA
2523-HW-Eaton-029
Overview
Flexible Power Protection for Smart Industrial Applications
The DIN850AC standby UPS system with hardwire AC input/output delivers reliable power and battery backup for computing, networking, control and storage equipment in factories, warehouses, edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment.
| Power Device | |
| UPS Technology | Off-line |
| Input Voltage | AC 120 V |
| Frequency Provided | 50/60 Hz ± 10% |
| Input Wiring | 1-phase |
| Input Connectors | 1 x hardwire |
| Output Voltage | AC 120 V 50/60 Hz |
| Power Capacity | 510 Watt / 850 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 588 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 97% at 100% Load |
| Power Factor (PF) | 0.6 |
| Battery | |
| Technology | Valve regulated lead-acid (VRLA) |
| Voltage Provided | DC 12 V |
| Run Time (Up To) | 2 min at full load ¦ 7 min at half load |
| Transfer Time | 10 ms |
| Networking | |
| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B |
| Miscellaneous | |
| Cables Included | USB control cable - external |
| Features | Single-phase, on/off power switch, surge protection, noise protection, steel housing, HID compatible, standby topology, audible alarm, LED indicators, noise suppression, convection cooling, remote ON/OFF function, cold-start function, emergency power off, Auto-Sensing Technology |
| Compliant Standards | CAN/CSA C22.2 No. 107.3, CSA, ICES, UL 1778, FCC Part 15 Class B, RoHS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 40 dBA |
| Dimensions & Weight | |
| Width | 12.3 in |
| Depth | 5.5 in |
| Height | 5.2 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8 in |
| Shipping Depth | 7.7 in |
| Shipping Height | 15.9 in |
| Shipping Weight | 13.23 lbs |
Ideal for Factory Floors and Extreme Temperatures

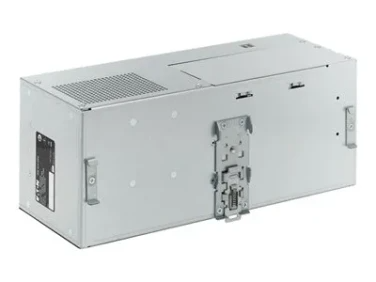

Get full use of the DIN850AC's power capacity because there is no derating based on its operating temperature range of 0°C (32°F) to 50°C (122˚F), which expands the number of locations in which it can be used. Built to fit into small spaces, the DIN850AC is a UL 508 recognized component for use in industrial panels. Its pre-installed clamp enables quick mounting to a 35 mm DIN rail. Its fanless design reduces noise and increases reliability.
