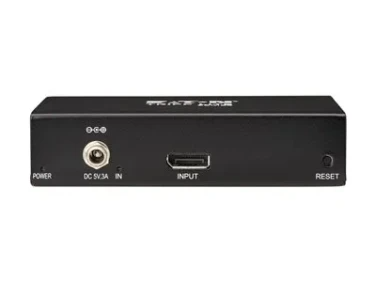

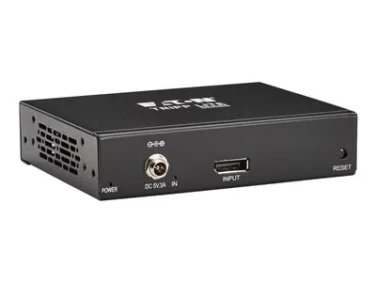

Eaton Tripp Lite series 2-Port DisplayPort to HDMI Multi-Monitor Splitter, MST Hub, 8K/4K 60 Hz, DP 1.4, TAA - video/audio splitter - 2 ports - TAA Compliant
2522-HW-Eaton-028
Overview
Connect up to 2 HDMI Monitors to Your DisplayPort Computer
This multi-display splitter connects two 4K or 8K HDMI monitors, projectors or televisions to the DisplayPort output on your laptop or desktop computer. Recommended for digital signage in schools, churches, trade shows, hotels, office conference rooms, restaurants, bars and retail outlets, the B156-002-H8K helps you create video walls, give audio/video presentations in front of large audiences or stream 4K/8K video to multiple locations.
| General | |
| Device Type | Video/audio splitter - 2 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI / DisplayPort |
| Ports | 2 x HDMI |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | DisplayPort MST support, 4:4:4 chroma subsampling support, 16-bit Deep Color support, LPCM 2.0 support, video wall support, extended display mode, video mirror mode, HDR support, rugged, metal housing, 3D support, AC3 support, DTS support, reset button, PoC |
| Compliant Standards | HDCP 2.3, HDCP 1.4 |
| Status Indicators | Signal, power |
| Expansion / Connectivity | |
| Interfaces | 2 x HDMI output ¦ 1 x DisplayPort input |
| Power | |
| Power Device | External power adapter |
| Power Provided | 5 V - 2 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Electric Current Required | 0.5 A |
| Power Consumption Operational | 26.5 Watt |
| Miscellaneous | |
| Color | Black |
| Included Accessories | 4 power plug adapters, mounting kit |
| Cables Included | 1 x power cable - 5 ft |
| Compliant Standards | DisplayPort 1.4, Plug and Play, GSA, FCC, UL, cUL, RoHS, UKCA, WEEE |
| TAA Compliant | Yes |
| Localization | North America, Europe, United Kingdom, Australia |
| Dimensions & Weight | |
| Width | 5 in |
| Depth | 3.9 in |
| Height | 1.2 in |
| Weight | 23.98 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.5 in |
| Shipping Depth | 10.2 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 25.75 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% RH (non-condensing) |
| Min Storage Temperature | 5 °F |
| Max Storage Temperature | 122 °F |
| Compatibility Information | |
| Designed For | P/N: P568-015-8K6, P568-020-8K6, P568-025-8K6, P568-030-8K6, P568FMM-10M-8K6, P568FMM-20M-8K6, P568FMM-30M-8K6, P568FMM-40M-8K6 |
DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays
By connecting the DisplayPort input to a source that supports DisplayPort MST Mode, you may connect two monitors simultaneously. This allows you to display the same image on each monitor, extend your host desktop across both monitors or combine both monitors into one large display as a video wall. LED indicators let you know which monitors are receiving an AV signal.
