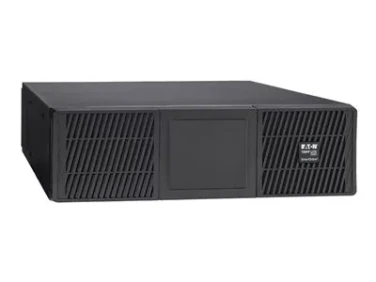

Eaton Tripp Lite Series 5kVA 120V Stepdown Transformer - 18 NEMA 5-20R Outlets, 60 Hz, L6-30P Input, 3 ft. Cord, 3U Rack/Tower - transformer - 5000 VA
2518-HW-Eaton-025
Overview
208V to 120V Isolation Transformer Converts High-Voltage Input to Low-Voltage Output

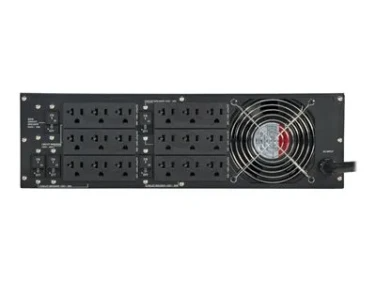

This 5kVA Stepdown Transformer converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features 18 NEMA 5-20R outlets (two sets of nine outlets) for connecting equipment with common NEMA 5-15P and NEMA 5-20P plugs
| General | |
| Device Type | Transformer - rack-mountable / external |
| Height (Rack Units) | 3U |
| Rack Size | 19" |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 200/208/220/230/240 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x 1 x power NEMA L6-30P |
| Power Output Connectors Details | 18 x power NEMA 5-20R - 120 V |
| Output Voltage | AC 120 V 50/60 Hz |
| Power Capacity | 5000 VA |
| Circuit Protection | Circuit breaker |
| Miscellaneous | |
| Included Accessories | Mounting hardware, 4-post rail kit |
| Cables Included | Power cable - integrated - 3 ft |
| Rack Mounting Kit | Included |
| Features | Metal housing |
| Compliant Standards | cUL Listed, NOM, RoHS |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 25.4 in |
| Height | 5.1 in |
| Weight | 95 lbs |
| Compatibility Information | |
| Designed For | P/N: SU5000RT, SU5000RTMB, SU6000RT, SU6000RT3UTAA, SU6000RTMB |
Resettable 20A circuit breakers protect your 120V equipment against overload conditions. The SUTFMR works with select 5kVA to 6kVA SmartOnline UPS systems.
Versatile Installation Options
You can mount the SUTFMR in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The three-foot power cord with L6-30P plug connects to a compatible AC outlet.
