Eaton Tripp Lite Series - Extender Kit - video/audio extender - TAA Compliant
2527-HW-Eaton-033
Overview
DisplayPort Extender for Digital Signage in Schools, Trade Shows and Lecture Halls

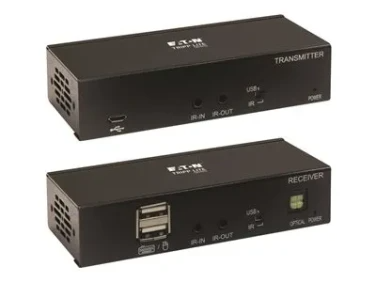

This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional AV cables allow.
| General | |
| Device Type | Video/audio extender |
| Form Factor | External |
| Color | Black |
| Localization | Australia, United Kingdom, North America, Europe |
| Networking | |
| Connectivity Technology | Wired |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Power, data |
| Features | 4:4:4 chroma subsampling support, DTS-HD support, Dolby TrueHD support, switch button, extended display mode, mirror display mode, 36-bit Deep Color support, 3D support, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, metal housing, CEC support |
| Compliant Standards | HDCP 1.4, HDCP 2.2, USB 1.1 |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (transmitter) - Type A female ¦ 1 x DisplayPort (transmitter input) female ¦ 1 x network (transmitter output) - RJ-45 female ¦ 1 x DisplayPort (receiver output) female ¦ 1 x network (receiver input) - RJ-45 female ¦ 1 x micro-USB (power) - Type B female ¦ 1 x TOSLINK (receiver) female ¦ 2 x USB keyboard / USB mouse (receiver) - Type A female ¦ 1 x IR input (receiver) - 3.5 mm female ¦ 1 x IR output (receiver) - 3.5 mm female ¦ 1 x IR input (transmitter) - 3.5 mm female ¦ 1 x IR output (transmitter) - 3.5 mm female |
| Miscellaneous | |
| Included Accessories | 4 power plug adapters |
| Mounting Kit | Included |
| Compliant Standards | EDID compatible, DisplayPort 1.2a, DisplayPort 1.4, CCC, GS, TUV, UL, cUL, NOM, FCC, REACH, RoHS, UKCA, WEEE, Plug and Play |
| TAA Compliant | Yes |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 4.5 in x 2.5 in x 1.1 in ¦ Receiver: 4.5 in x 2.5 in x 1.1 in |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 6.5 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 15.87 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% RH (non-condensing) |
| Compatibility Information | |
| Designed For | P/N: P580-015-8K6, P580-020-8K6, P580-025-8K6, P580-030-8K6, P580-035-4K6, P580-050-4K6, P580-070-4K6 |
The B127A-1A1-BDBDA extends 4K signals from a DisplayPort source to a DisplayPort monitor up to 230 feet (70 meters) away via user-supplied Cat6 cabling. By adding a B127A-010-H HDMI repeater or B127A-110-BH transceiver (both sold separately) to the application, you can extend the signal up to 400 feet (122 meters) or 460 feet (140 meters), respectively.
