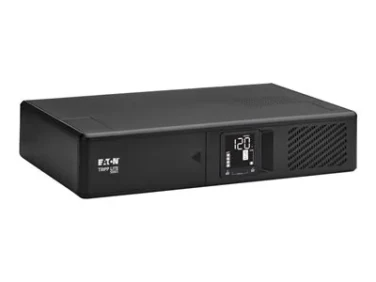

Eaton Tripp Lite Series - UPS - 1050 Watt - 1500 VA
2528-HW-Eaton-034
Overview
The SMART1500LCDXNC line-interactive cloud-connected UPS system combines cloud connectivity, remote management and advanced protection features. Its flexible form factor is suitable for desktop or floor placement, under desks or workstations, mounted on a wall or installed in 2U of space in a 2-post or 4-post rack. It's recommended for home, office and retail use, as well as network closets in both local and remote locations
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15P |

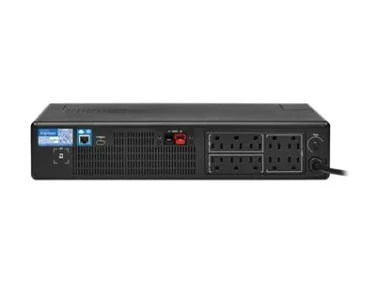

| Power Output Connectors Details | 10 x power NEMA 5-15R (UPS and surge) |
| Output Voltage | AC 120 V 50/60 Hz |
| Power Capacity | 1050 Watt / 1500 VA |
| Output Waveform | Sinewave |
| Surge Energy Rating | 158 Joules |
| Battery | |
| Technology | Lead acid |
| Voltage Provided | DC 24 V |
| Run Time (Up To) | 2 min at full load ¦ 10 min at half load |
| Miscellaneous | |
| Features | Plastic housing, Automatic Voltage Regulation (AVR), LCD display, cold-start function, hot-swappable batteries, LED indicators, power failure alarm, low battery alarm, overload alarm, silent mode, overload protection, pure sinewave output |
| Compliant Standards | CAN/CSA-C22.2 No. 107.3 (Canada), ICES, NOM, UL 1778, FCC Class B certified, DOE, CEC |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% RH |
| Width | 17.2 in |
| Depth | 10.5 in |
Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (near-field communication) feature lets you configure network settings instantly from your mobile device.
