Eaton Tripp Lite Series - UPS - 750 Watt - 1000 VA - VRLA
-
NG # 2529-HW-Eaton-035
Manufactured by:

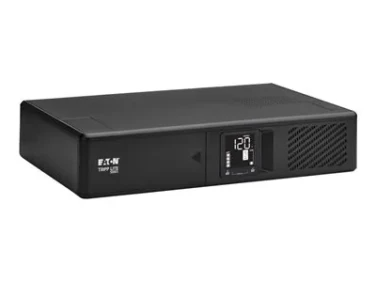

The SMART1000PSRTNC line-interactive cloud-connected UPS system combines cloud connectivity, remote management and advanced protection features. Its slim tower design is suitable for desktop or floor placement or installed in a rack (with optional mounting kit, sold separately). It's recommended for home, office and retail use, as well as network closets in both local and remote locations.
Specification
General Device Type UPS external Height (Rack Units) 2U Power Device UPS Technology Line interactive Input Voltage AC 120 V Frequency Provided 50/60 Hz Frequency Required 50/60 Hz Input Connectors 1 x power NEMA 5-15P Power Output Connectors Details 10 x power NEMA 5-15R (UPS and surge) Output Voltage AC 120 V ± 10% - 50/60 Hz Power Capacity 750 Watt / 1000 VA Output Waveform Sinewave Surge Energy Rating 156 Joules Circuit Protection Circuit breaker Efficiency 95.16% at 100% Load Battery Technology Valve regulated lead-acid (VRLA) lead acid Run Time (Up To) 1.8 min at full load ¦ 10 min at half load Recharge Time 8 hours Transfer Time 6 ms Features Valve-regulated Networking Remote Management Interface USB, NFC, Ethernet Expansion / Connectivity Interfaces 1 x USB - 4 pin USB Type A ¦ 1 x USB - 24 pin USB-C Miscellaneous Cables Included Power cable - integrated - 5 ft Equipment Protection Value 250000 US Dollars Features Audible alarm, diagnostic LED, EMI filtering, LED status indicators, rack-mountable, RFI filtering, tower mountable, remote monitoring, pure sinewave output, LCD display, Automatic Voltage Regulation (AVR), cold-start function, audible alarm, cooling fan, overvoltage correction, undervoltage correction, VRLA battery support, battery backup capability Compliant Standards FCC Part 15 B Class B., RoHS, CSA, Mexico NOM, UL 1778, EMI Sustainability Information ENERGY STAR Yes Manufacturer Warranty Service & Support United States and Canada: limited warranty - 3 years Environmental Parameters Min Operating Temperature
32 °FMax Operating Temperature 104 °F Humidity Range Operating 0 - 95% RH (non-condensing) Dimensions & Weight Width 17.2 in Depth 10.5 in Height 15.4 in Weight 25.99 lbs Dimensions & Weight (Shipping) Shipping Width 6.6 in Shipping Depth 16.3 in Shipping Height 18.8 in Shipping Weight 27.8 lbs
Description
Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (near-field communication) feature lets you configure network settings instantly from your mobile device.
