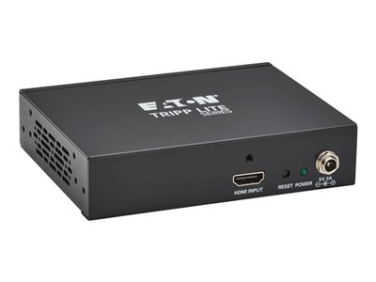

Eaton Tripp Lite series - video/audio splitter - 4 ports - TAA Compliant
-
NG # 2510-HW-Eaton-017
-
MF # B118-004-8K
Manufactured by:
Specification
General Information
Device Type: Video/Audio Splitter – 4 Ports
Mounting Options: Desktop or Wall-Mountable
Subtype: HDMI
Color: Black
Chassis Material: SECC Zinc-Plated Sheet Metal
Video & Audio Features
Supported Resolutions: Up to 7680 x 4320 @ 60Hz (8K UHD)
Chroma Subsampling: 4:2:0, 4:2:2, 4:4:4
Color Depth Support: 12-bit & 36-bit Deep Color
HDR Support: HDR10+
Audio Format Support: AC3, DTS
3D Support: Yes
Multi-Resolution Support: Yes
Ports & Connectivity
HDMI Input: 1 x HDMI
HDMI Outputs: 4 x HDMI
Interface Compliance: HDCP 2.3
Status Indicators: Power, Signal
Additional Features: Reset Button, DSCP Support, Surface Mountable
Power
Power Supply: External Power Adapter
Power Output: 2A
Input Voltage: AC 100–240V, 50/60 Hz
Power Consumption: 10W (Operational)
Current Requirement: 0.35A
Environmental Conditions
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: 5°F to 122°F (-15°C to 50°C)
Physical Dimensions
Width: 3.9 inches (9.9 cm)
Depth: 1.2 inches (3.0 cm)
Height: 5 inches (12.7 cm)
Weight: 24.69 oz (700 g)
Certifications & Compliance
Regulatory Standards:
FCC
RoHS
UKCA
WEEE
HDCP 2.3
Plug and Play
Mexico NOM
cUL
UL
TAA Compliant: Yes
Localization Regions: Australia, Europe, North America, United Kingdom
Package Contents
HDMI Splitter Device
International Power Plugs
Surface Mounting Brackets
Warranty
Manufacturer Warranty: 1-Year Limited Warranty
Description
8K HDMI Splitter Transmits 8K Video + Audio to 4 HDMI Displays at the Same Time
Recommended for home theaters or short-distance digital signage applications in classrooms, offices, restaurants, bars, hotels and trade shows, this Ultra High Definition (UHD) HDMI splitter is quick and easy to install. It connects to an HDMI source device, such as a laptop or Blu-ray player, and transmits an 8K audio/video signal to four HDMI monitors, projectors or televisions simultaneously. Multi-resolution output allows video content to be presented at the optimal resolution for each display's capabilities.
Transmits 8K Video with HDR10+ and 4:4:4 Color
The B118-004-8K supports Ultra HD 8K resolutions up to 7680 x 4320 at 60 Hz with 36-bit Deep Color (12 bits per channel), as well as DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound. Place the splitter up to 10 feet from an HDMI source and up to 15 feet from a connected monitor for a maximum distance of nearly 25 feet from source to display. High Dynamic Range (HDR10+) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 8K display. HDCP 2.3 encryption allows you to stream 8K content with no loss in resolution. This splitter also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or for using your HDTV as a PC monitor.
Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Say you have a brand new 8K/60 Hz HDTV in the living room, but want to also connect your Blu-ray player or media server to the older 1080p TV in the kitchen and the 4K/60 Hz monitor in your home office. The B118-004-8K is backward compatible with 4K and 1080p resolutions via automatic switching, allowing each connected display to show video at its maximum resolution without affecting the other outputs.
Ready to Use Right Out of the Package
The plug-and-play HDMI splitter requires no software to download and install. User-supplied HDMI cables (such as P568-Series, sold separately) connect the splitter to both the source and displays. The included external power supply comes with four international plug adapters that allow you to use the B118-004-8K around the world.
