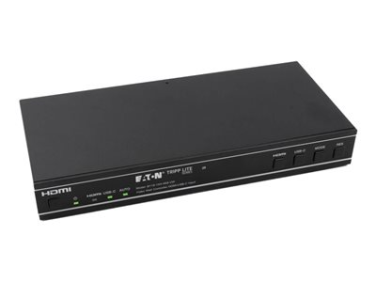

Eaton Tripp Lite series - video/audio switch - 1 x 4 - 4 ports
-
NG # 2513-HW-Eaton-020
-
MF # B119-1X4-4K6-VW
Manufactured by:
Specification
General
Device Type: Video/Audio Switch - 1 x 4 (4 ports)
Enclosure Type: Wall-mountable, Desktop
Subtype: HDMI
Ports
4 x HDMI Outputs
1 x HDMI Input
1 x USB-C Input
1 x SPDIF Output
1 x Audio Output
1 x RS232
Performance
Bandwidth: 18 Gbps
Max Resolution: 3840 x 2160 @ 60 Hz (4K UHD)
Features
HDR Support
Dolby Digital, Dolby Digital EX, Dolby Digital Plus Support
DTS Support
12-bit Deep Color Support
3D Support
Chroma Subsampling: 4:2:0, 4:2:2, 4:4:4 Support
LPCM 2.0 & LPCM 5.1 Support
Metal Housing
8KV ESD Protection (Air-gap discharge)
4KV ESD Protection (Contact discharge)
Push Button Control
Built-in IR Receiver
Status Indicators
Power
HDMI
USB
Auto
Power
External Power Adapter
Power Provided: 12 V / 1 A
Voltage Required: AC 100-240 V (50/60 Hz)
Electric Current: 0.3 A
Compliance & Standards
HDCP 2.2
EDID Compatible
IEC 61000-4-2
CEC
FCC
UL / cUL
RoHS
UKCA
WEEE

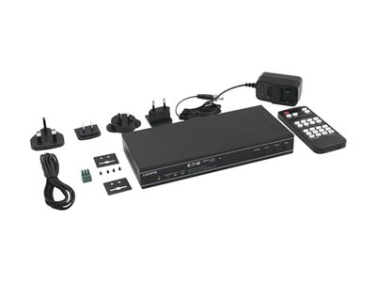

Included Accessories
Remote Control
International Power Plugs
4 Screws
2 Mounting Brackets
IR Receiver Cable (5 ft)
RS-232 Adapter
Power Adapter (4 ft)
Physical Dimensions
Width: 8.7 in (221 mm)
Depth: 3.9 in (99 mm)
Height: 1.2 in (30 mm)
Weight: 20.81 oz (590 g)
Shipping Dimensions & Weight
Shipping Width: 11 in (280 mm)
Shipping Depth: 7.1 in (180 mm)
Shipping Height: 3.1 in (79 mm)
Shipping Weight: 2.43 lbs (1.1 kg)
Environmental Conditions
Operating Temperature: 32 °F to 104 °F (0 °C to 40 °C)
Operating Humidity: 20% - 90% RH (non-condensing)
Storage Temperature: -4 °F to 140 °F (-20 °C to 60 °C)
Warranty
Limited Warranty: 3 Years
Description
Extends 4K Video from a Single Source to Create 8 Different Video Wall Configurations
This Video Wall Controller is designed to capture, convert, route and distribute all video signal formats to a video wall. It features HDMI and USB-C input with resolution up to 4K at 60 Hz and four HDMI outputs to create eight video wall splicing modes to be stretched either horizontally or vertically: 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4 and 2x2. You can set display modes via front-panel buttons, the included IR remote or RS-232 commands.
Note
: In video wall mode (except 1x1), only the screens that are selected to perform video wall splicing will display images. Their bezel can be adjusted.
Transmits 4K Video with HDR and 4:4:4 Color
The B119-1X4-4K6-VW supports Ultra HD 4K resolutions at 60 Hz with LPCM, Dolby Digital/Plus/EX and DTS audio. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This switch also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Plug-and-Play Operation for Quick Setup and Immediate Use
The unit works right out of the box with no software required. Mounting hardware is included for installing the units on a wall, under a desk or in a 19-inch rack. Connect a 4K source device to either the HDMI or USB-C input and up to four 4K displays to the HDMI outputs with user-supplied cables. The external power supply comes with four international plug adapters to ensure an AC connection anywhere.
