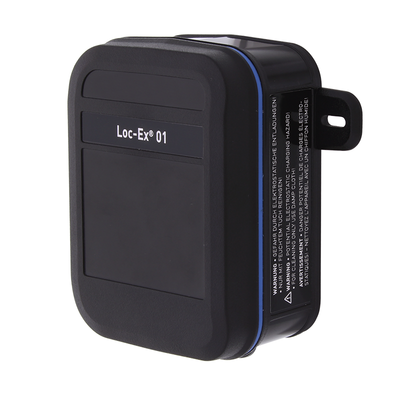

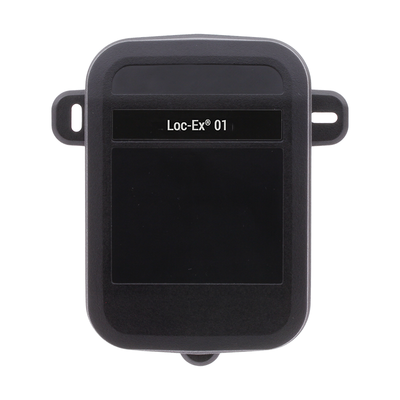

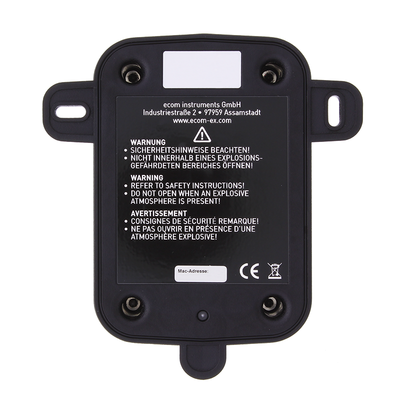

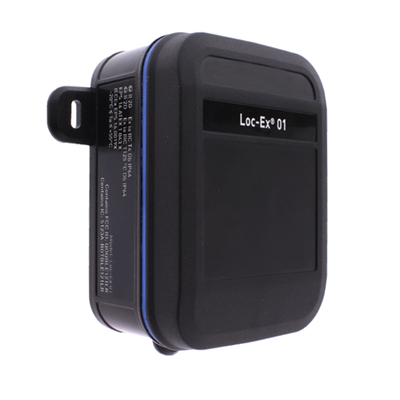

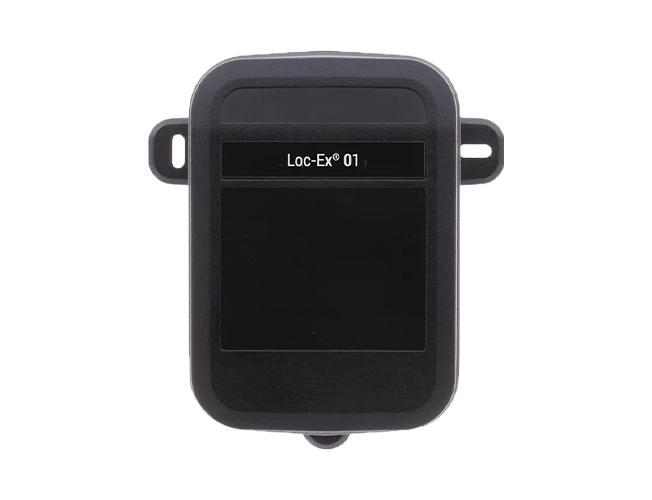

Ecom Intrinsically Safe Beacon: Loc-Ex® 01
TF:
001629-HW-ECOM-029
Overview
BLE Beacons are small BT beacons that emit a signal at periodic intervals. Due to their UV-resistant housing material they can be used both, indoors and outdoors.
| General specifications | |
| Color | black |
| Electrical specifications | |
| Battery type | 2x Saft, LS14500 3.6 V, 2600 mAh AA / Mignon / R6 Li-SOCl2 |
| Operating duration | approx. 4 years (with factory setting) |
| Interface | |
| Interface type | Bluetooth® Low Energy (from 4.0) |
| Transmitter frequency | 1000 ms |
| Transmitter radiated power | max. 8 dBm |
| Detection range | 30 m range in buildings, max. 200 m outdoors |
| Protocol | ECOM Standard compatible with Android™ smartphones (UUID, Major ID, Minor ID, RX Power) |
| Approvals and certificates | |
| CE conformity | CE0102 |
| Ambient conditions | |
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) |
| Storage temperature | -30 ... 30 °C (-22 ... 86 °F) |
| Mechanical specifications | |
| Degree of protection | IP64 |
| Mass | |
| Dimensions W x H x D | 111 mm x 102 mm x 48 mm |
| ATEX certificate | EPS 16 ATEX 1 043 X |
| ATEX marking | 1 II 2G Ex ia IIC T4 Gb IP64 1 II 2D Ex ia IIIC T125°C Db IP64 |
The beacons can be mounted directly on a suitable surface or easily adapted on the optional available mounting plate (which facilitates the battery exchange of the beacons).
