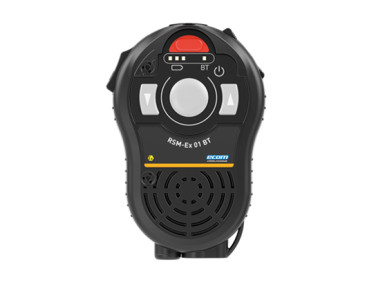

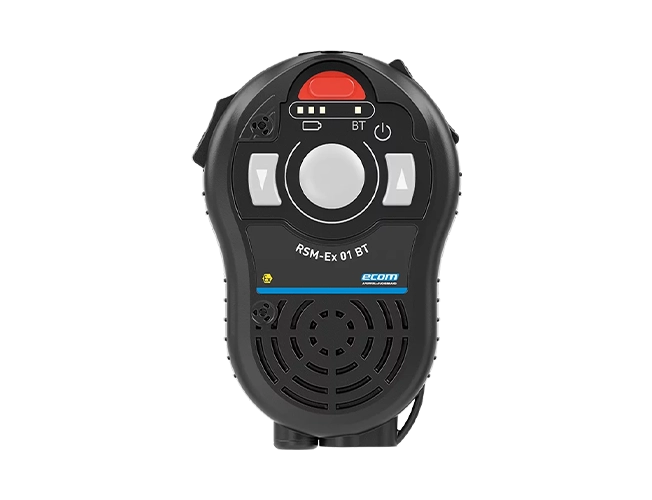

Ecom RSM-Ex 01 BT Z0 / D1 - Intrinsically safe Bluetooth Remote Speaker Microphone for NEC/CEC Division 1 & Zone 0/21

  • NG # 1045-HW-ECOM-010

Manufactured by:

This seller generally responds in under 48 hours

The ecom RSM-Ex01-D1, designed for North America NEC/CEC Division 1, is an intrinsically safe remote speaker microphone (RSM) available in both wired (3.5mm straight plug) and Bluetooth options. With an IP64 rating, it features a built-in noise reduction function for enhanced performance.

Add to favorites | Compare this product

Specification



LOUDSPEAKER PERFORMANCEUp to 103 dB
POWER SUPPLYLi-Ion 3.7 V
2200 mAh
COMMUNICATION
  • Bluetooth® 5.0
  • NFC
BUTTONS
  • PTT button operable with thick gloves
  • Front-facing multi-function button
  • Volume up / down
  • Channel up / down
  • On / Off
  • Red Button
RUN TIMES**
Use time in % with typical user profiles
Speak / Hear / Standby		100%
(Level 15 Media; Level 8 Phone call)		75%
(Level 10 Media; Level 4 Phone call)		25%
(Level 3 Media; Level 2 Phone call)
5 / 5 / 90-> 50 h-> 64 h-> 71 h
25 / 25 / 50-> 22 h-> 44 h-> 64 h
50 / 50 / 0-> 13 h-> 31 h-> 57 h
 **determined runtimes on the Smart-Ex® 02 based on RSM-Ex 01 BT software version 1.0.0
STANDBY TIMEApprox. 74 hours
TEMPERATURE RANGE

Ta = -20 … +60°C



IP RATINGIP 64 following EN/IEC 60079-0 (ATEX/ IECEx).



Description

The RSM-Ex 01 BT comes with an IP64 rating and a built-in noise reduction function. It is able to produce clear, high-volume audio (up to 103 dB). The RSM is intuitive and easy to use, even when wearing gloves.
