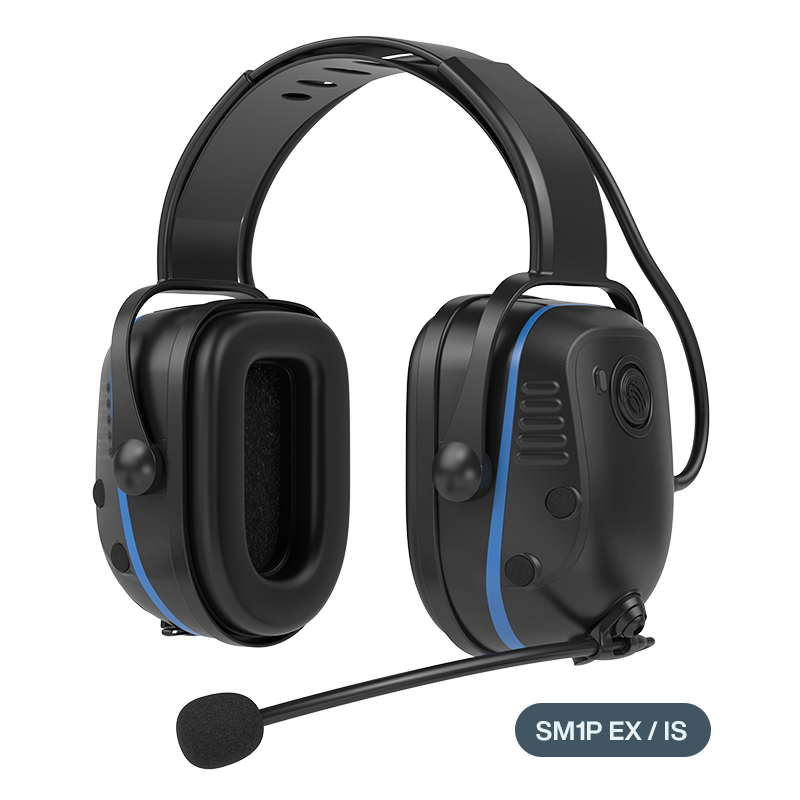

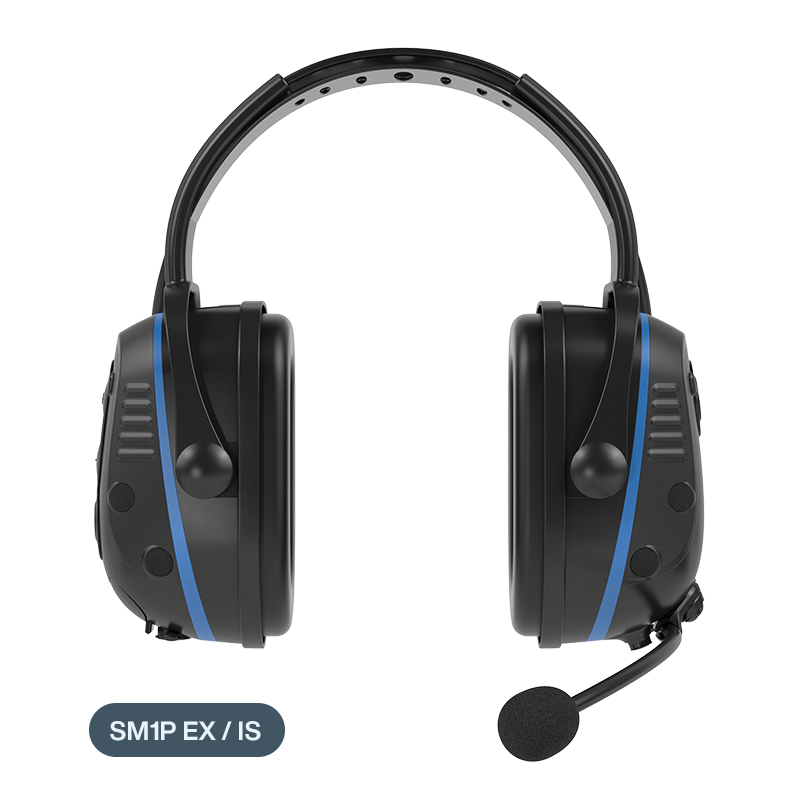

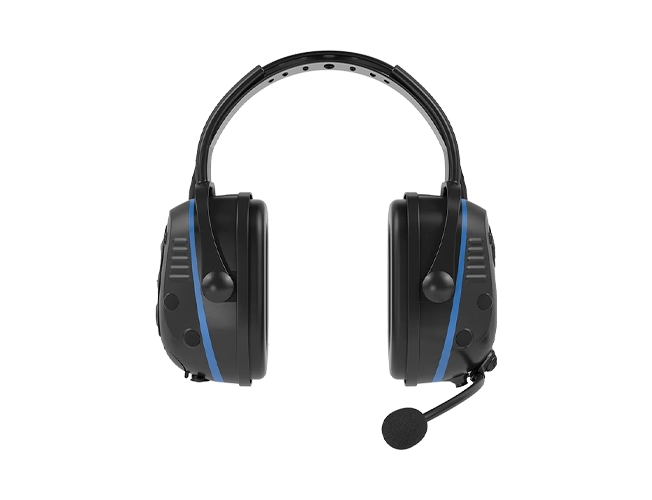

Ecom SM1P: The Intrinsically Safe Bluetooth® Headset Series
TF:
001630-HW-ECOM-030
Overview
The intrinsically safe ecom headsets SM1P enable high noise two way radio, bluetooth, headset to headset communication and face to face communication in hazardous environments that require ATEX / IECEx or CSA certification
| Model | Headband (HB) | ||
| Weight | 495 g (17.46 oz.) | ||
| IP Rating | IP 54 | ||
| Operating Time | 18 hours | ||
| Certifcate | CSA (NAM only) | ATEX / IECEx + CSA | |
| Model | SM1PBWIS01 | SM1PBWEX01 | |
| HEARING PROTECTION | |||
| Volume limiter | 82 dB (A) [programmable] – only applicable when headset is powered on | ||
| Region | Australia / NZ | USA / Canada | Europe |
| Standard | AS/NZS 1270 | ANSI S3.19 | EN352-1/EN352-3 |
| Result | SLC80 | NRR | SNR |
| HB | 31 dB, Class 5 | 27 dB | 33 dB |
| GENERAL | |||
| IP Rating | IP54 | ||
| POWER | |||
| Battery type | Rechargeable - lithium ion | ||
| Battery capacity | 2250 mAh | ||
| Operating time | 18 hours (Wireless with Bluetooth/Short Range activated) | ||
| Charge time | 4 hours | ||
| Charging temperature | 0°C to +40°C (32°F to 104°F) | ||
| COMMUNICATION | |||
| Voice Transmission | Boom microphone – noise canceling | ||
| Bluetooth | Bluetooth® 3.0: HFP (8KHz and 16KHz), HSP, A2DP, range 15 meters (49 feet) |
Users of the SM1P Intrinsically Safe headsets benefit from clear communication using its wireless capabilities as well as face-to-face communication while still protecting their hearing and remaining aware of the surrounding work environment.
