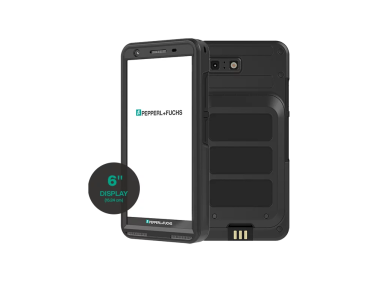

ECOM Smart-Ex® 03 DZ1: Intrinsically safe 5G smartphone for Zone 1/21 & DIV 1
-
NG # 1038-HW-ECOM-003
Manufactured by:
The new Smart-Ex® 03 smartphone sets the basis for future-oriented digital application scenarios in hazardous areas

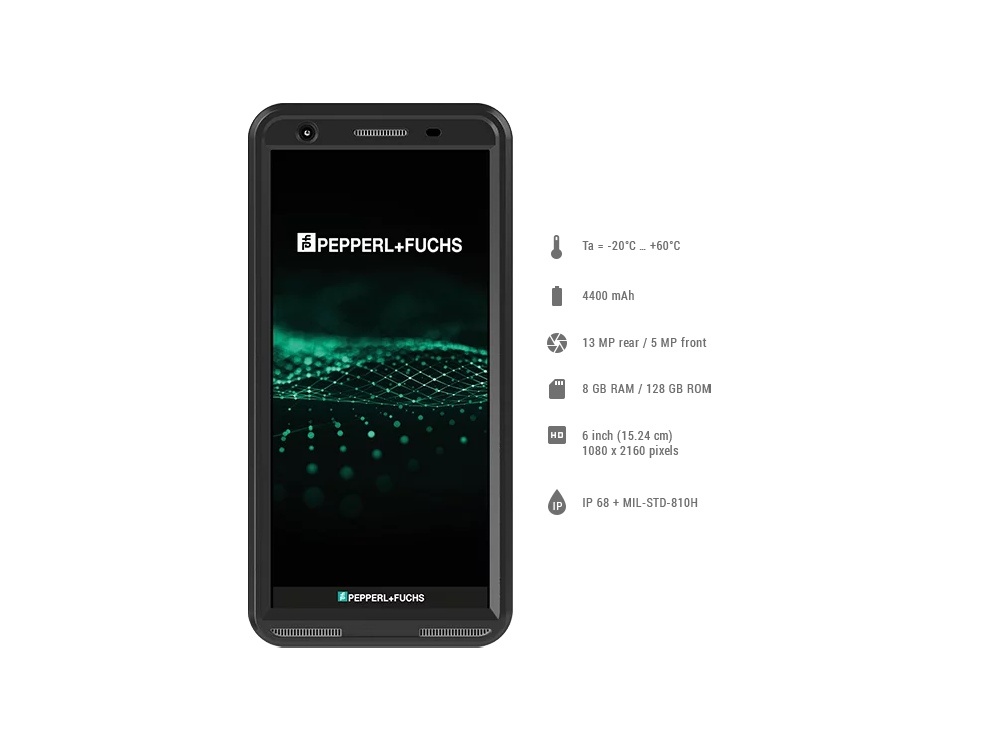

Specification
| OPERATING SYSTEM | Android™ |
| RAM & ROM | 8 Gbyte / 128 Gbyte |
| DISPLAY | 15.24 cm / 6 inch; 1080 x 2160 pixels; capacitive multitouch; operational while wearing gloves |
| BATTERY TYPE | Li-Ion battery , 4500 mAh (exchangable) |
| MOBILE STANDARD | 2G GSM: 800 / 850 / 900 / 1800 / 1900 MHz, 3G WCDMA: B1, B2, B4, B5, B8 (850 / 900 / 1700 / 1900 / 2100 MHz), 4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B66, B71, 4G LTE TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48, 5G NR FDD: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n66, n71, 5G NR TDD: n38, n40, n41, n48, n77, n78, n79 |
| WLAN | 6E ready, 802.11 a/b/g/n/ac/ax/e/k/r/v, support for Enterprise deployments |
| BLUETOOTH™ | 5.2 Low Energy support |
| SIM CARD | Dual SIM (eSIM + nano SIM) |
Description
The rugged smartphone has a large, high-resolution display, powerful features, and optimized accessories. Its extended temperature range makes it suitable for even the harshest environments.
Designed to support 21 LTE frequency bands, the Smart-Ex® 02 has no SIM lock and can be connected to different networks worldwide. An Android™ 11 operating system enables the intrinsically safe device to work safely, quickly, and efficiently.
The ergonomic design and intuitive user interface enhance the user experience, and optimized accessories and peripherals ensure total compatibility with current and future ecom products. With the most powerful replaceable battery on market (4400 mAh), longer shifts and 24-hour work coverage are possible.
The Smart-Ex® 02 also sets new standards when it comes to security. Regular security updates prevent unauthorized access to confidential personal and company data.
To ensure unlimited, long-term use of the smartphone, ecom offers a three-year service level agreement. Pepperl+Fuchs’ global sales and service network provides excellent customer service around the globe. Support from ecom’s system engineers and development teams is also available when software requirements change.
