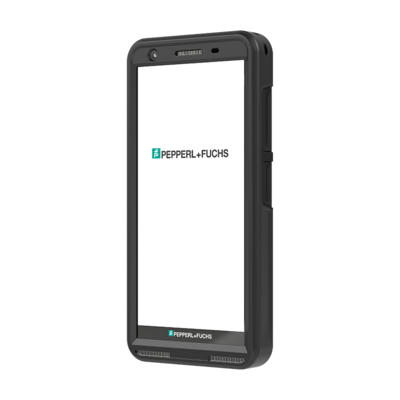

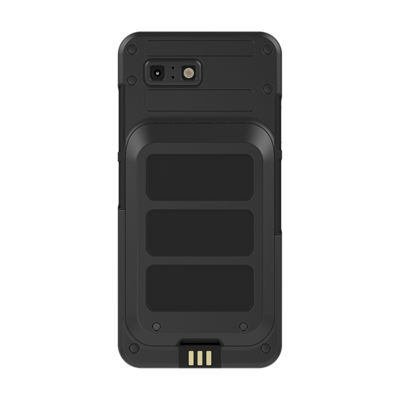

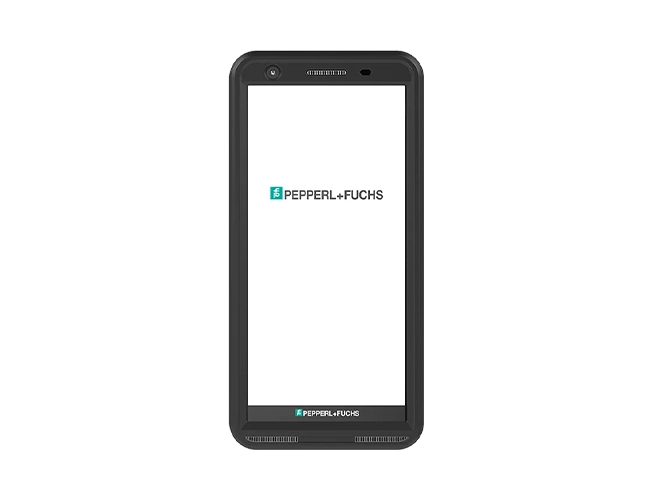

Ecom Smart-Ex® 03 DZ2: Intrinsically safe 5G smartphone for Zone 2/22 & DIV 2
-
NG # 001624-HW-ECOM-024
Manufactured by:
The new Smart-Ex® 03 smartphone sets the basis for future-oriented digital application scenarios in hazardous areas
With the intrinsically safe Smart-Ex® 03, Pepperl+Fuchs presents a 5G and Wi-Fi 6 ready smartphone. In the 6-inch Android smartphone, Pepperl+Fuchs combines its global, customer-oriented support with the know-how of its subsidiaries ECOM Instruments as a pioneer in intrinsically safe mobile devices and Aava Mobile as an expert in industrial tablets and wireless technology.
Specification
Internal data memory 128 GByte 1 Sensors Biometric, Accelerometer, Gyrometer, Magnetometer, Barometer, Proximity, Ambient light Display Can be operated while wearing gloves
Extreme shock and scratch resistant Gorilla® glass Touchscreen technology Capacitive multitouch Screen diagonal 15.24 cm / 6 inch Resolution 1080 x 2160 pixels Key Programmable push-to-talk, alarm and multifunction button
Power button with fingerprint sensor
Volume up/downBattery type Li-Ion battery , 4400 mAh I/O ports Charging via USB Type C + robust charging pads for charging in docking station (accessory)
3.5 mm audio interface, supporting legacy and standard 3.5mm audio accessories and updated PTT accessories through new, specific audio interfaceMobile standard 2G GSM: 800 / 850 / 900 / 1800 / 1900 MHz 3G WCDMA: B1, B2, B4, B5, B8 (850 / 900 / 1700 / 1900 / 2100 MHz) 4G LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B34, B38, B39, B40, B41, B42, B43, B48, B53, B66, B71 5G NR: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79 WLAN 6E ready, 802.11a/b/g/n/ac/ax/e/k/r/v, support for Enterprise deployments Bluetooth 5.2 with Low Energy support GPS sensor GPS, GLONASS, Galileo, QZSS, BeiDou NFC yes SIM card Dual SIM (eSIM + nano-SIM) Operating system Android™ 13
Android™ Enterprise Recommended verified deviceApplications Google ARCore ready SMS/MMS yes Ambient temperature -20 ... 60 °C (-4 ... 140 °F) Degree of protection IP68 according to EN/IEC 60529
MIL-STD-810HMass 400 g Dimensions W x H x D 84 mm x 172 mm x 18 mm / 25 mm Note Android is a trademark of Google LLC.
1 no SD Card memory extension
Description
The next level of digitalization in hazardous areas
With only one hardware version, the Smart-Ex 03 is the most innovative smartphone covering major 5G/4G/3G/2G cellular public and private networks for worldwide use in areas with increased risk of explosion in Zone 1/21 & DIV 1, Zone 2/22 & DIV 2 and mining.
