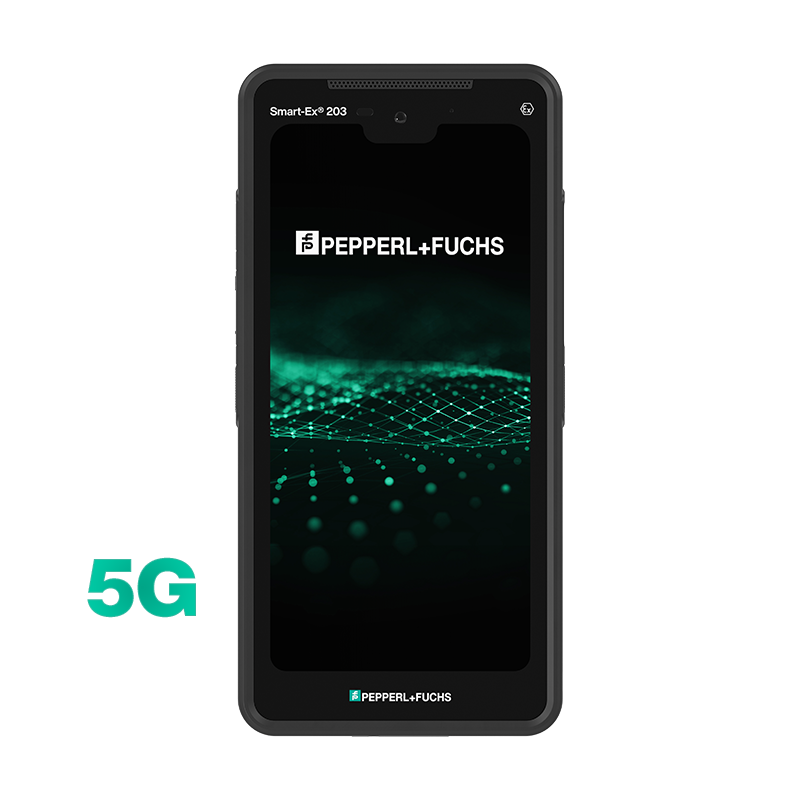

Ecom Smart-Ex® 203: Future-Proof 5G Smartphone Designed for Zone 2/22 and Division 2
TF:
001626-HW-ECOM-026
Overview
The new Smart-Ex® 203 extends the well-established and widely recognized Smart-Ex® smartphone series, offering a dedicated solution for mobile applications in Zone 2/22 and Division 2. It sets the benchmark for industrial-grade smartphones for use in hazardous-rated areas.
| Processor | Qualcomm QCM4490 3GPP Rel 16 support | |
| RAM | 8 GByte | |
| Camera | Version without camera available. | |
| Front camera | 16 MP | |
| Main camera | 48 MP with autofocus and LED flash | |
| Scanner | Optional additional 1D/2D-scan module SM-Ex S203 SR (#70192137, Zebra SE4107) available as accessory | |
| Internal data memory | 128 GByte | |
| Optional data memory | microSD card up to 512 GByte possible | |
| Sensors | Biometric, Accelerometer, Gyrometer, Magnetometer, Barometer, Proximity, Ambient light | |
| Display | ||
| Touchscreen technology | Capacitive multitouch | |
| Panel type | TFT | |
| Screen diagonal | 16 cm / 6.3 inch | |
| Resolution | 1080 x 2340 pixels (FHD+) | |
| Special Features | Can be operated while wearing gloves Use in rain and wet conditions | |
| Key | Programmable push-to-talk and multifunction button (can be used as an alarm button) Power button Volume up/down | |
| Battery type | Li-ion 4500 mAh | |
| I/O ports | USB C Additional interface for peripherals Charging pads for charging in docking station | |
| Mobile standard | ||
| 4G | LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B66, B71 LTE-TDD: B34, B38, B39,B40,B41, B42, B43, B48 | |
| 5G | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n28, n29, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79 | |
| WLAN | IEEE 802.11 2.4 GHz - b/g/n 5 GHz / 6 GHz: - a/ac/ax (Wi-Fi 6e) | |
| Bluetooth | 5.2 (BLE supported) | |
| GPS sensor | GPS, GLONASS, Galileo, QZSS, BeiDou | |
| NFC | yes | |
| SIM card | Dual SIM (eSIM + nano-SIM) | |
| Operating system | Android™ 14 with GMS (Google Mobile Services) Android™ Enterprise Recommended verified device (pending) ARCore certification (pending) | |
| Cybersecurity | ||
| IT Security | ||
| Biometrics | Fingerprint sensor (side) | |
| Updates | Security updates until 2032 Operating system update up to Android™ 18 possible, Android™ 16 update planned. | |
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) | |
| Storage temperature | -20 ... 55 °C (-4 ... 131 °F) | |
| Degree of protection | IP68 according to EN/IEC 60529 MIL-STD-810H | |
| Mass | 365 g | |
| Dimensions | ||
| W x H x D | 86 mm x 177 mm x 17 mm | |
With a 6.3-inch (16 cm) display and strong focus on high performance features, it brings innovations that enhance mobility, including 5G & Wi-Fi 6 connectivity and eSIM support, providing future-ready communication capabilities.
