Ecom Tab-Ex® 04 Pro D2 – 5G, 10.1" Android™ Tablet | Division 2
TF:
001617-HW-ECOM-017
Overview

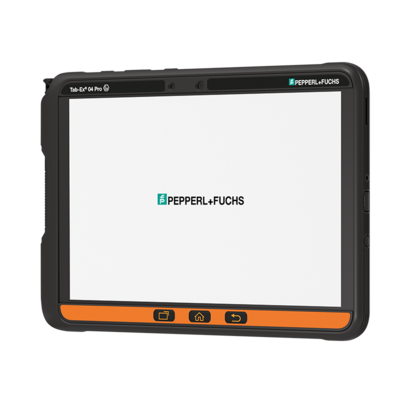

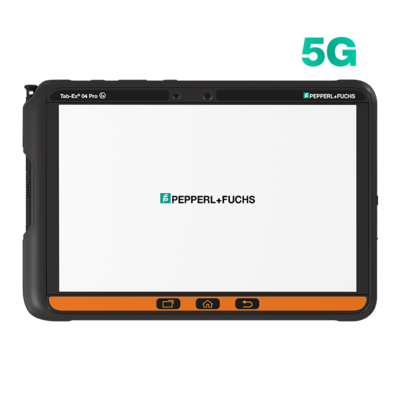

The Tab-Ex 04 Pro expands the Tab-Ex series as the world’s first and only 10-inch, 5G Android tablet. The rugged, highly secure tablet is based on Samsung’s state-of-the-art Galaxy Tab Active4 Pro and comes in a slim and lightweight design. The tablet’s 10-inch screen is ideal for demanding applications.
| Hardware | ||
|---|---|---|
| Indicators/operating means | ||
| Electrical specifications | ||
| Communication | ||
| Software | ||
| Ambient conditions | ||
| Mechanical specifications | ||
| Processor | Octa-Core, 4 x 2.4 GHz + 4 x 1.8 GHz Qualcomm Snapdragon SM7325-2-AB | |
| RAM | 4 GByte* Optional: 6 GByte* | |
| Camera | ||
| Front camera | 8 MP | |
| Main camera | 13 MP Autofocus | |
| Video recording resolution | UHD 4K (3840 x 2160 Pixel) @ 30 fps | |
| Scanner | Fingerprint scanner | |
| Internal data memory | 64 GByte*, available memory 45.6 GByte Optional: 128 GByte*, available memory 104.6 GByte | |
| Optional data memory | Micro SD flash card up to 1 TByte | |
| Sensors | Accelerometer, barometer, fingerprint sensor, position sensor, compass, hall sensor, ambient light sensor, proximity sensor | |
| Display | Can be operated while wearing gloves | |
| Touchscreen technology | Capacitive multitouch | |
| Type | TFT, LCD | |
| Screen diagonal | 10.1" (25.66 cm) | |
| Aspect ratio | 21.6:18 | |
| Resolution | 1920 x 1200 (WUXGA) | |
| Brightness | 480 cd/m2 (nit) | |
| Colors | 16 Mio. | |
| Battery type | Li-Ion battery 28.12 WH 3.8 V 7400 mAh | |
| Operating duration | up to 15 h | |
| Mobile standard | ||
| 3G | UMTS Bands: 850, 900, 1800, 1900 | |
| 4G | LTE Bands: B2, B4, B5, B13, B48 (for US model), B66 Domestic LTE Roaming Bands: B7, B12, B14, B25, B26, B29, B41, B71 Global LTE Roaming Bands: B1, B3, B8, B17, B20, B28 | |
| 5G | 5G NR Bands FR1: n2, n5, n25, n41, n66, n71, n77, n78 | |
| WLAN | 802.11 a/b/g/n/ac/ax (2,4 GHz + 5 GHz), HE80, MIMO, 1024-QAM | |
| Bluetooth | 5.2 with Low Energy support | |
| GPS sensor | GPS, GLONASS, Beidou, Galileo, QZSS | |
| USB | USB 3.2 (Type C) | |
| Connections | Wi-Fi Direct, NFC, ANT+ | |
| SIM card | Optional: 1x Nano SIM (4FF) | |
| Languages | Deutsch , English (default) | |
| Safety | Samsung KNOX 3.x | |
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) | |
| Degree of protection | IP68 according to EN/IEC 60529 MIL-STD-810H | |
| Mass | 850 g | |
| Dimensions | ||
| W x H x D | 170.2 mm x 243.5 mm x 9.9 mm | |

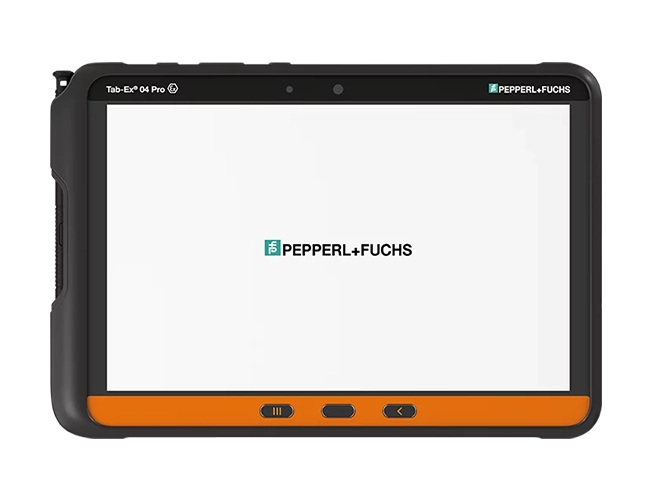

The new 10" Android tablet features a slim and lightweight design. The practical 10-inch widescreen is made for demanding applications or web-based content and can be operated with gloves and the Samsung S Pen.
