Ecom Tab-Ex® 04 Pro DZ2 – 5G, 10.1" Android™ Tablet | ATEX Zone 2/22 & Division 2
TF:
001616-HW-ECOM-016
Overview

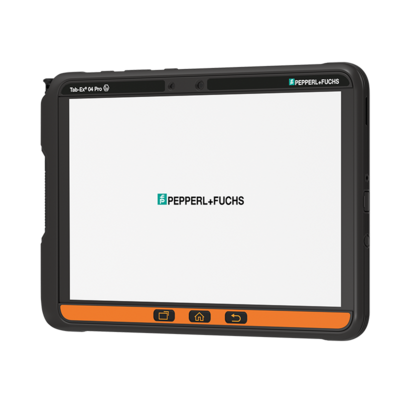

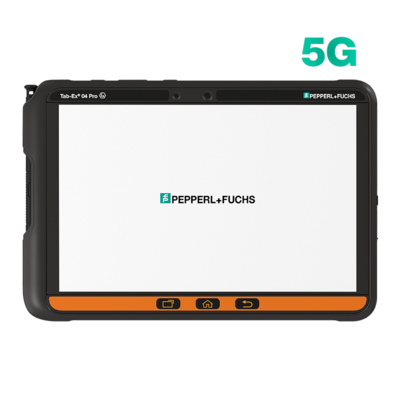

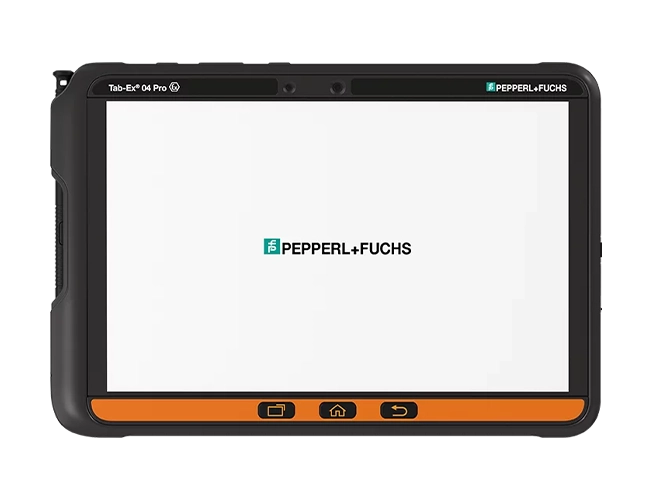

The Tab-Ex 04 Pro expands the Tab-Ex series as the world’s first and only 10-inch, 5G Android tablet. The rugged, highly secure tablet is based on Samsung’s state-of-the-art Galaxy Tab Active4 Pro and comes in a slim and lightweight design. The tablet’s 10-inch screen is ideal for demanding applications.
| Hardware | ||
|---|---|---|
| Indicators/operating means | ||
| Electrical specifications | ||
| Communication | ||
| Software | ||
| Ambient conditions | ||
| Mechanical specifications | ||
| Processor | Octa-Core, 4 x 2.4 GHz + 4 x 1.8 GHz Qualcomm Snapdragon SM7325-2-AB | |
| RAM | 6 GByte* | |
| Camera | Optional: | |
| Front camera | 8 MP | |
| Main camera | 13 MP Autofocus | |
| Video recording resolution | UHD 4K (3840 x 2160 Pixel) @ 30 fps | |
| Internal data memory | 128 GByte* Free available memory 104.6 GByte | |
| Optional data memory | Micro SD flash card up to 1 TByte | |
| Sensors | Accelerometer, barometer, position sensor, compass, hall sensor, ambient light sensor, proximity sensor | |
| Display | Can be operated while wearing gloves | |
| Touchscreen technology | Capacitive multitouch | |
| Type | TFT, LCD | |
| Screen diagonal | 10.1" (25.66 cm) | |
| Aspect ratio | 21.6:18 | |
| Resolution | 1920 x 1200 (WUXGA) | |
| Brightness | 480 cd/m2 (nit) | |
| Colors | 16 Mio. | |
| Battery type | Li-Ion battery 28.12 WH 3.8 V 7400 mAh | |
| Operating duration | up to 15 h | |
| Mobile standard | Optional: | |
| 2G | GSM: GSM 850, GSM 900, DCS 1800, PCS 1900 | |
| 3G | UMTS: B1 (2100), B2 (1900), B4 (AWS), B5 (850), B8 (900) | |
| 4G | LTE FDD: B1 (2100), B2 (1900), B3 (1800), B4 (AWS), B5 (850), B7 (2.600), B8 (900), B12 (700), B13 (700 ), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900), B26 (850), B28 (700), B32 (1500), B66 (AWS-3) LTE TDD: B38 (2600), B40 (2300), B41 (2500) 4 x 4 MIMO: B1 (2100), B3 (1800), B4 (AWS), B7 (2600), B66 (AWS-3), B38 (2600), B41 (2500) | |
| 5G | 5G Sub6 FDD: n1 (2100), n3 (1800), n5 (850), n7 (2600), n8 (900), n20 (800), n28 (700), n66 (AWS 3) 5G Sub6 TDD: n38 (2600), n40 (2300), n41 (2500), n77 (3700), n78 (3500) 4 x 4 MIMO: n1 (2100), n3 (1800), n7 (2600), n66 (AWS-3), n38 (2600), n41 (2500), n77 (3700), n78 (3500) | |
| WLAN | 802.11 a/b/g/n/ac/ax (2,4 GHz + 5 GHz), HE80, MIMO, 1024-QAM | |
| Bluetooth | 5.2 with Low Energy support | |
| GPS sensor | GPS, GLONASS, Beidou, Galileo, QZSS | |
| USB | USB 3.2 (Type C) | |
| Connections | Wi-Fi Direct, NFC, ANT+ | |
| SIM card | Optional: 1x Nano SIM (4FF) | |
| Operating system | Android™ | |
| Languages | Deutsch , English (default) | |
| Safety | Samsung KNOX 3.x | |
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) | |
| Degree of protection | IP68 according to EN/IEC 60529 MIL-STD-810H | |
| Mass | 930 g | |
| Dimensions | ||
| W x H x D | 170.2 mm x 243.5 mm x 9.9 mm | |
The Tab-Ex 04 Pro expands the Tab-Ex series as the world’s first and only 10-inch, 5G Android tablet. The rugged, highly secure tablet is based on Samsung’s state-of-the-art Galaxy Tab Active4 Pro and comes in a slim and lightweight design. The tablet’s 10-inch screen is ideal for demanding applications.
