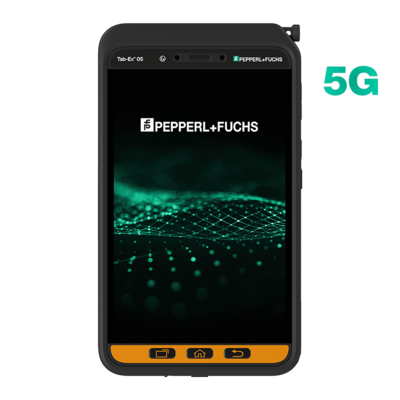

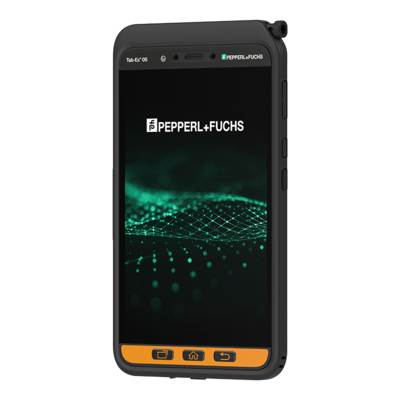

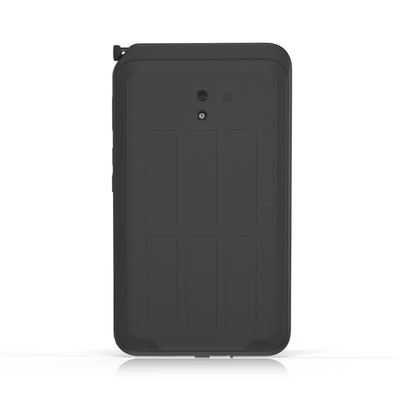

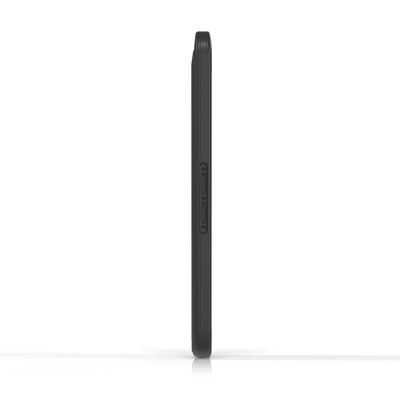

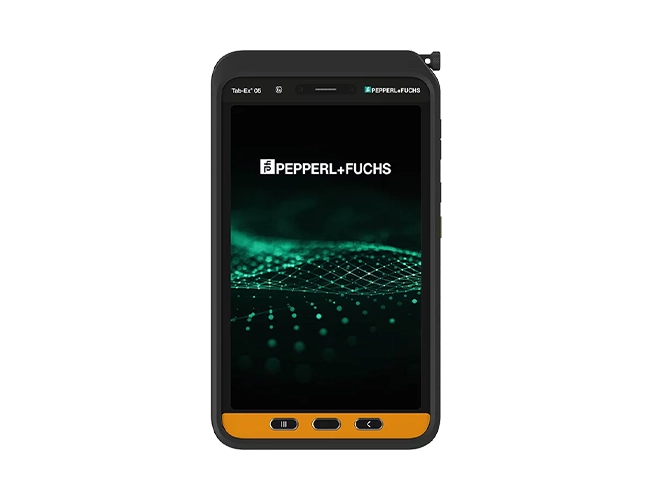

Ecom Tab-Ex® 05 DZ2 – The best-in-class 8" 5G Android™ Tablet | Zone 2/22 & DIV 2
-
NG # 001614-HW-ECOM-014
Manufactured by:
The rugged and highly secure intrinsically safe Android Tablet Tab-Ex® 05 continues the success story of the 8" Tab-Ex® Series.
Specification
Hardware Indicators/operating means Electrical specifications Interface Communication Software Ambient conditions Mechanical specifications Processor Exynos 1380 (S5E8835) Octa-Core 4 x 2.4 GHz + 4 x 2.0 GHz 64 Bit, 5 nm RAM 6 GB LPDDR4X Camera Version without camera available. Front camera 5 MP
1/5.0" sensor, F2.2 aperture Main camera 13 MP
1/3.0" sensor, F1.9 aperture, autofocus, 8x digital zoom Video recording resolution UHD 4K (3840 x 2160) @ 30 fps Internal data memory 128 GB UFS Optional data memory microSD (up to 1 TB) Sensors Accelerometer, Gyro Sensor, Geomagnetic Sensor, Hall Sensor, RGB Light Sensor, Proximity Sensor Display Touchscreen technology Capacitive Refresh rate Standard (60 Hz) / Adaptive (up to 120 Hz) Type TFT Screen diagonal 20.31 cm / 8 inch Aspect ratio 16:10 Resolution 1920 x 1200 (WUXGA)
283 ppi Brightness max. 600 cd/m2 (nits) Colors 16 Mio. Special Features Can be operated while wearing gloves
Dark Mode, Adaptive Brightness, Eye Comfort, Screen Saver, Screen Zoom, Multi-Touch
Corning® Gorilla ® Glass 3Key Function button, Active button Battery type Li-ion 3.8 V 5050 mAh 18.87 Wh (typically) Operating duration up to 14 h I/O ports USB 2.0 (Type-C)
3.5 mm jack connection
POGO PinMobile standard Also available in a Wi-Fi only version. 4G LTE FDD: B1 (2100), B2 (1900), B3 (1800), B4 (AWS), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B20 (800), B26 (850), B28 (700), B32 (1500), B66 (AWS 3), B68 (700)
LTE TDD: B38 (2600), B40 (2300), B41 (2500)
4x4 MIMO: B1 ( 2100), B3 (1800), B4 (AWS), B7 (2600), B66 (AWS 3), B38 (2600), B41 (2500) 5G Sub6 FDD: N1 (2100), N3 (1800), N5 (850), N7 (2600), N8 (900), N20 (800), N26 (850), N28 (700), N66 (AWS 3), N71 (600)
Sub6 TDD: N38 (2600), N40 (2300), N41 (2500), N77 (3700), N78 (3500)
4x4 MIMO: N1 (2100), N3 (1800), N7 (2600), N66 (AWS 3), N38 (2600), N40 (2300), N41 (2500), N77 (3700), N78 (3500)WLAN WLAN 802.11 a/b/g (2.4 GHz), WiFi 4, 5, 6 (2.4 GHz + 5 GHz ), HE80, MIMO, 1024 QAM, WiFi Direct, Mobile Hotspot, Hotspot 2.0, Auto Hotspot Bluetooth Bluetooth® 5.3 GPS sensor GPS, Glonass, Beidou, Galileo NFC yes Connections Wireless DeX SIM card Nano (4FF) / eSIM (optional) Operating system Android™ 14
Android™ Enterprise Recommended verified device
OS upgrades up to Android™ 22
Security updates until 2032
Google ARCore readySafety Samsung KNOX 3.10
Facial recognitionAmbient temperature -20 ... 55 °C (-4 ... 131 °F) Degree of protection IP68 according to EN/IEC 60529 (pending)
MIL-STD-810H (pending)Mass 595 g Dimensions W x H x D 131.8 mm x 228.4 mm x 14.5 mm
Description
With the Tab-Ex® 05 users get a powerful tablet based on the latest Samsung Galaxy Tab Active5. As an Android Enterprise Recommended (AER) device ― the highest industry requirements are always met with regular upgrades and security patches.
