EM-I14A 14 Inch Ultra-large Rugged Tablet Intel Core i5/i7 Windows 11
-
NG # 006103-HW-EMDOOR-003
Manufactured by:
Specification
Basic
parameters Dimensions 366.2mmx246.9mmx24.8mm Machine weight TBD Machine color Black Display 14 inch LCD 16:9, 1920x1080, 1000 nits Touch screen 10 point G+G capacitive touch screen Camera Front 5.0MP (USB)+ Rear 8.0MP (USB) I/O Interface USB3.2 *1, USB2.0 *2,
TYPE-C, Supports Thunderbolt 4,
HDMI 2.0a mini x1,
SIM *1, TF *1,
DB9 (RS232) *1、RJ45 *2,
12PIN Pogo Pin *1,
3.5mm Standard Earphone Jack *1,
DC19V/3.78A Power port *1,
M.2-2280 PCIe interface *1, optional SSD,
M.2, E-KEY, PCIE interface *1, optional Custom
modulePower adapter AC100V ~ 240V, Output DC 19V/3.78A 71.82W(EU Standard)
Optional: US StandardWireless
Communications WIFI WiFi 6, 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Bluetooth BT5.1
Transmission distance: 10m2G/3G/4G/5G 4G/5G GNSS Supports single GPS or single glonass, default GPS Performance
parameters CPU Intel i5-1235U GPU Intel® Iris® Xe Graphics eligible Operating system Windows 11 PRO Memory 16GB/32GB Storage capacity 256GB SSD
Optional 512GB/1TBBattery
Performance Battery Built-in - 1300mah/11.1V / Built in Li_polyment,battery loadable / 1.5 hours
Hot-swappable - 4700mah/11.4V / Li_polyment, removeable battery / 8 hoursData
collection NFC Optional 1D Optional 2D Optional Fingerprint YES Product
reliability Operating temperature -20℃~60℃ Storage temperature -30℃~70℃ Humidity 95%, no condensation Protection level IP65 certified, MIL-STD-810H certified Drop height 1.22m drop resistance
Description

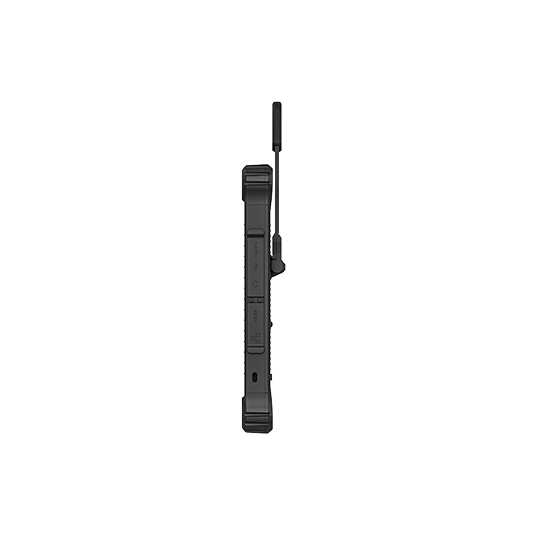

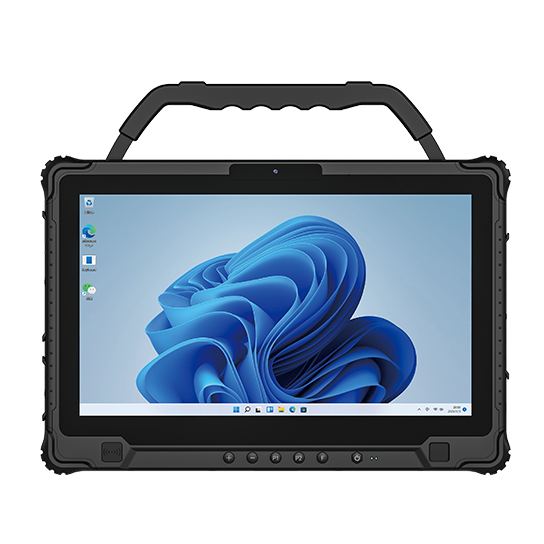

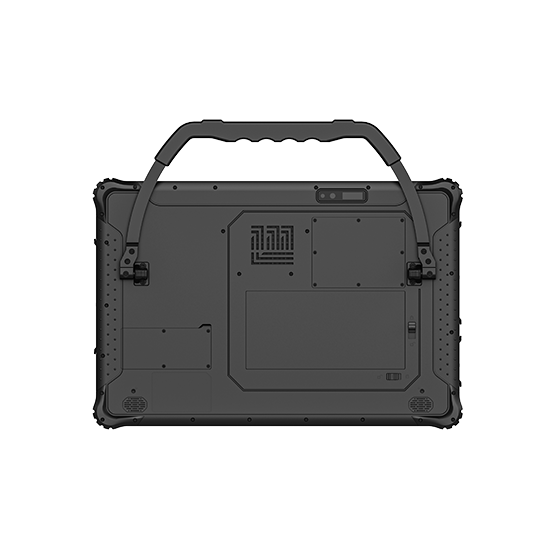

The rugged tablet PC I14A is a 14 inch Windows 11 ultra-large rugged tablet. Powered by the Intel i5-1235U processor and running on Windows 11 PRO, it's solid, practical, professional, and efficient.
