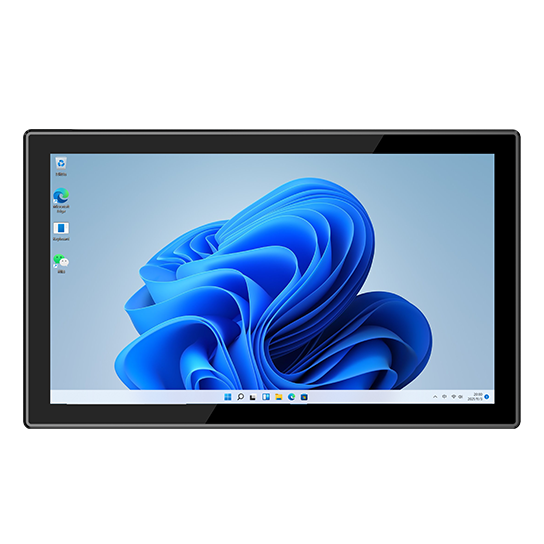

EM-P15J Intel Celeron N5100 15.6 Inch Windows Industrial Panel PC
-
NG # 006128-HW-EMDOOR-028
Manufactured by:
Specification
Basic parameters Dimensions 388.63 x 248.43 x 54.95 mm Machine weight 2.4kg Machine color Black Display 15.6-inch LCD 16:9, resolution 1920x1080, 220nits Touch screen 10 PCAP Camera / I/O Interface USB3.0*2 USB2.0*2 DCIN 12V-24V Power connector *1 Standard Earphone Jack *1 lRJ45 *2 DB9 PORT RS232 *2 (Configurable viaonboard jumper cap to:RS485*1，RS232*1) HDMI2.0a *1 Power adapter AC100V ~ 240V、50Hz/60Hz output DC 12V/4A Wireless Communications WIFI WIFI 802.11 (a/b/g/n/ac) Frequency: 2.4G+5G Bluetooth BT5.0 2G/3G/4G/5G 2G/3G/4G GNSS / Performance parameters CPU N5100 GPU Intel UHD Operating system Windows 11 Pro Memory 8GB Storage capacity 128GB Battery Performance Battery / Data collection NFC NO 1D NO 2D NO Fingerprint NO Product reliability Operating temperature -20℃~60℃ Storage temperature -30℃~70℃ Humidity 95%, no condensation Protection level IP65 Front Panel Drop height 1.22m drop resistance
Description
The 15.6 inch industrial panel pc P15J is a powerhouse. Powered by Intel® Celeron® Processor N5100 processors and running Windows 11 Pro. Fanless thermal design ensures 24/7 reliability. It resists electromagnetic interference and static, and has an IP65 rating for dust and water protection.
