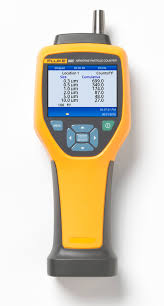

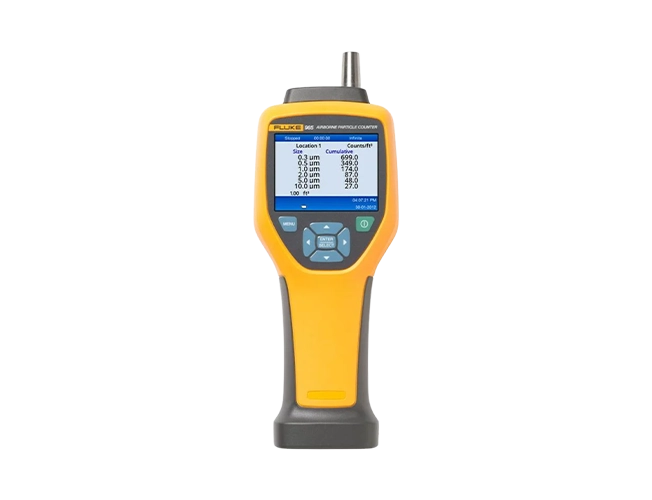

Airborne particle counter Fluke 985

  • NG # 00218-HW-FLUKE-019

Manufactured by:

This seller generally responds in under 48 hours

The Fluke 985 Particle Counter is the preferred choice for HVAC and IAQ professionals. From filter testing to IAQ investigations, the Fluke 985 is the portable solution for determining airborne particle concentrations. Use the Fluke 985 to immediately respond to occupant complaints, or as part of a comprehensive preventive maintenance program.

Specification

Measured Specifications
Channels0.3 μm, 0.5 μm, 1.0 μm, 2.0 μm, 5.0 μm, 10.0 μm
Flow rate0.1 cfm (2.83 L/min)
Light source775 nm to 795 nm, 90 mW class 3B laser
Count modesRaw counts, #/m3, #/ft3, #/liter in Cumulative or Differential mode
Counting efficiency50% @ 0.3 μm; 100% for particles > 0.45 μm (per ISO 21501)
Zero count1 count / 5 minute (JIS B9921)
Concentration limits10% at 4,000,000 particles per ft3 (per ISO 21501)
Data storage10,000 records (rotating buffer)
AlarmsCounts, low battery, sensor fail
Delay time0 to 24 hours
Sample inletIsokinetic probe
SecurityAdministrator password control (optional)
Communication modeUSB or Etheret
Dimensions (L x W x D)27.2 x 9.9 x 5.3 cm (10.7 x 3.9 x 2.1 in)
Weight0.68 kg (1.5 lb)
Power adapter100 V AC to 240 V AC, 12 V DC, 2.5 A
Rechargeable batteryLi-ion 7.4 V 2600 mAh; 10 hours typical use (5 hours continuous sampling) / 3.5 hours
CalibrationPSL particles in air (NIST traceable)
Operating environment50°F to 104°F (10°C to 40°C) / < 95% non-condensing relative humidity
Storage environment14°F to 122°F (-10°C to 50°C)/Up to 98% non-condensing relative humidity
WarrantyOne-year
Accessories includedCradle for charging and convenient USB and Ethernet communications, ENET CAT5E 7 foot cable, USB-A to MINI-B 6 foot cable, 12 V dc power supply, zero count inlet- filter, filter adapter, sample inlet protective cap, hard case, getting started manual and users manual CD

Description

With a large screen, intuitive icons for navigation and on-screen data presentation, the Fluke 985 allows users to run more tests quickly, with less time spent cycling through screens to obtain the data. The Fluke 985 is lightweight and easy to use in any position and with easy data export options using USB cable, memory stick it’s easy to review and analyze the data anywhere and anytime.
