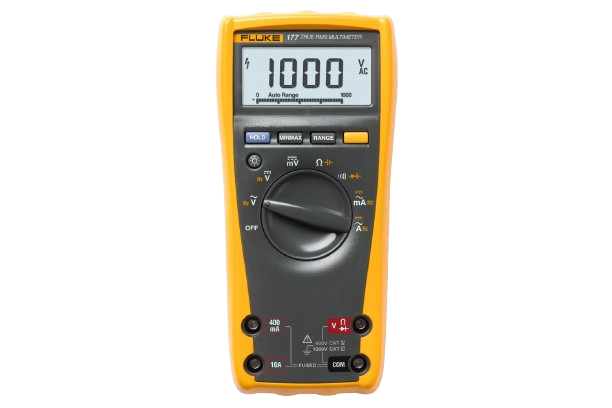

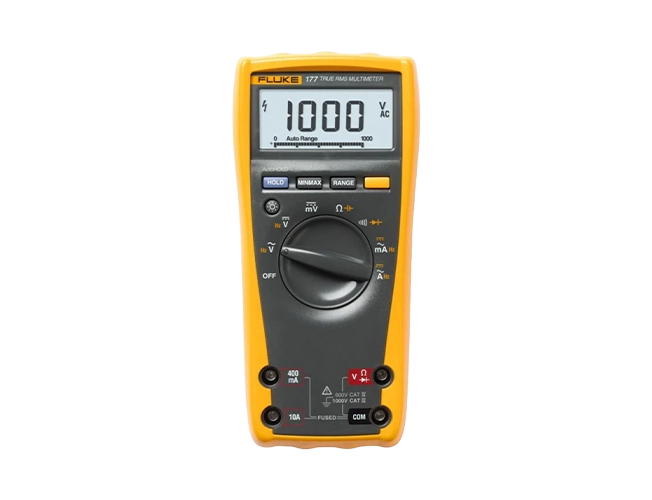

Fluke 177 True-RMS Digital Multimeter
-
NG # 00208-HW-FLUKE-009
Manufactured by:
With its precision, reliability, and ease of use, the Fluke 177 Digital Multimeter is the preferred solution for professional technicians worldwide. Independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments, the Fluke 177 Includes all the features you need to troubleshoot and repair many problems in electrical and electronic systems.
Specification
Voltage DC Accuracy1 ±(0.09% + 2) Max. resolution 0.1 mV Maximum 1000 V Voltage AC Accuracy1 ±(1.0% + 3) Max. resolution 0.1 mV Maximum 1000 V Current DC Accuracy1 ±(1.0% + 3) Max. resolution 0.01 mA Maximum 10 A Current AC Accuracy1 ±(1.5% + 3) Max. resolution 0.01 mA Maximum 10 A Resistance Accuracy1 ±(0.9% + 1) Max. resolution 0.1 Ω Maximum 50 MΩ Capacitance Accuracy1 ±(1.2% + 2) Max. resolution 1 nF Maximum 10,000 µF Frequency Accuracy1 ±(0.1% + 1) Max. resolution 0.01 Hz Maximum 100 kHz 1. Accuracies are best accuracies for each function Environmental Specifications Operating temperature -10°C to +50°C Storage temperature -30°C to +60°C Humidity (without condensation) 0% – 90% (0°C – 35°C)
0% – 70% (35°C – 50°C)Safety Specifications Overvoltage category EN 61010–1 to 1000 V CAT III
EN 61010–1 to 600 V CAT IVAgency approvals UL, CSA, TÜV listed and VDE Pending Mechanical and General Specifications Size 43 x 90 x 185 mm Weight 420 g Warranty Lifetime Battery life Alkaline ~200 hours typical, without backlight
Description
With the Fluke 177 Digital Multimeter you get True-RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging, and frequency, capacitance, resistance, continuity, and diode measurements. In addition, the Fluke 177 provides 0.09% basic accuracy, a digital display with analog bar graph and backlight. Plus a limited lifetime warranty.
