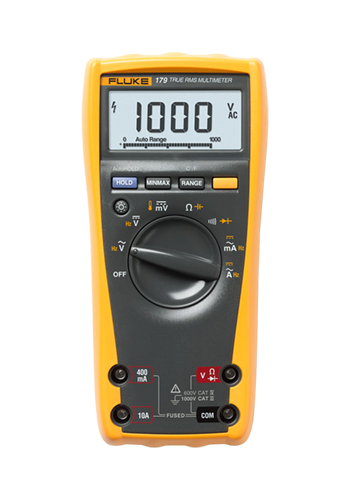

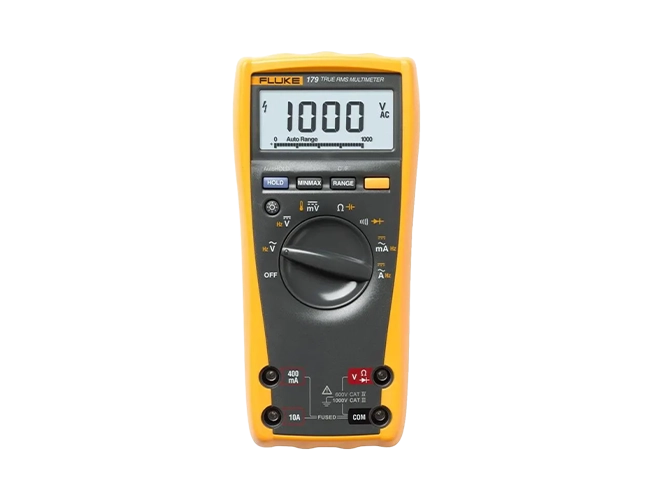

Fluke 179 True-RMS Digital Multimeter
-
NG # 00205-HW-FLUKE-006
Manufactured by:
The Fluke 179 True-rms Digital Multimeter is the industry-standard troubleshooting tool for electrical and electronic systems. This incredibly versatile multimeter makes a perfect front-line troubleshooting tool with an input protection rating of CAT III 1000 V, CAT IV 600 V.
Specification
Voltage DC Accuracy1 ±(0.09% + 2) Max. resolution 0.1 mV Maximum 1000 V Voltage AC Accuracy1 ±(1.0% + 3) Max. resolution 0.1 mV Maximum 1000 V Current DC Accuracy1 ±(1.0% + 3) Max. resolution 0.01 mA Maximum 10 A Current AC Accuracy1 ±(1.5% + 3) Max. resolution 0.01 mA Maximum 10 A Resistance Accuracy1 ±(0.9% + 1) Max. resolution 0.1 Ω Maximum 50 MΩ Capacitance Accuracy1 ±(1.2% + 2) Max. resolution 1 nF Maximum 10,000 µF Frequency Accuracy1 ±(0.1% + 1) Max. resolution 0.01 Hz Maximum 100 kHz Temperature Accuracy1 ±(1.0% + 10) Max. resolution 0.1°C Range -40°C / 400°C 1. Accuracies are best accuracies for each function Environmental Specifications Operating temperature -10°C to +50°C Storage temperature -30°C to +60°C Humidity (without condensation) 0% – 90% (0°C – 35°C)
0% – 70% (35°C – 50°C)Safety Specifications Overvoltage category EN 61010–1 to 1000 V CAT III
EN 61010–1 to 600 V CAT IVAgency approvals UL, CSA, TÜV listed and VDE Pending Mechanical and General Specifications Size 43 x 90 x 185 mm Weight 420 g Warranty Lifetime Battery life Alkaline ~200 hours typical, without backlight
Description
Ideal for troubleshooting and repairing electrical and electronic systems due to this True RMS multimeter's backlit digital display, analog bar graph, and built-in temperature measurements. Additionally, this tool works well in messy, loud, high energy, and high altitude areas.
