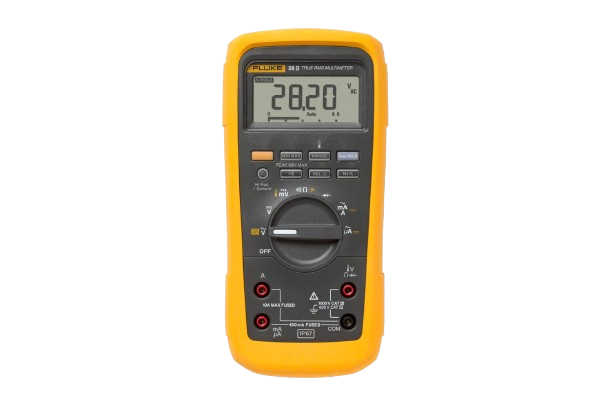

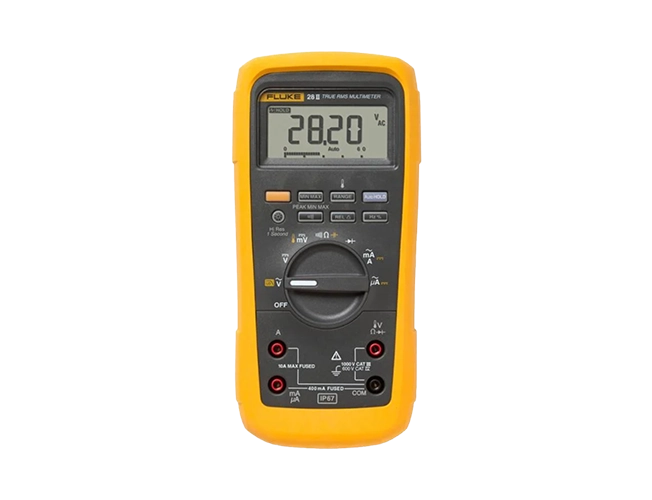

Fluke 28 II Rugged Digital Multimeter
-
NG # 00210-HW-FLUKE-011
Manufactured by:
The Fluke 28 II digital multimeter defines the standard for operating in harsh conditions with the features and accuracy to troubleshoot most electrical problems.
Specification
DC voltage Range 0.1 mV to 1000 V Accuracy 0.05% + 1 AC voltage Range 0.1 mV to 1000 V Accuracy 0.7% + 4 DC current Range 0.1 μA to 10 A Accuracy 0.2% + 4 AC current Range 0.1 μA to 10 A Accuracy 1.0% + 2 Resistance Range 0.1 Ω to 50 MΩ Display counts 6000 Capacitance 1 nF to 9999 μF Frequency 0.5 Hz to 199.99 kHz Temperature -200°C to +1090°C Low pass filter (Measurement on VSD’s) Yes Compliance CAT IV 600 V , CAT III 1000 V IP rating IP 67 Power Three AA batteries Battery life 800 hours General Specifications Display Bar graph/backlight Yes/Yes Data storage Peak transient capture 250 μS Min/Max/Avg Yes Reading hold Yes Other features Relative readings (zero) Yes Battery type Three AA batteries Warranty and protection Safety rating CAT IV 600 V/CAT III 1000 V Mine safety MSHA Approved External protection Rubber holster Drop test 10 feet drop test Dustproof/waterproof Yes, IP 67 rated Warranty Limited lifetime Size (H x W x L) with holster 6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 in) Weight with holster 698.5 g (1.54 lb)
Description
The Fluke 289 digital multimeter is the next generation high performance industrial logging multimeter. This Fluke Connect-compatible multimeter is designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. Let the Fluke 289 be your watchdog for systems or processes while you are off doing other jobs. This digital multimeter provides the ability to log data and graphically review up 10,000 recorded events and logged readings with on-board TrendCapture. Zoom on trend provides a 14x zoom to view and analyze data—without needing a PC.
Because the 289 is Fluke Connect-compatible you can set it up with the ir3000 FC wireless connector (sold separately) to communicate with your iOS and Android smart devices through the Fluke Connect mobile app and monitor readings from a remote location. Or you can share readings with your team in an instant anytime, from anywhere with ShareLive™ video call. It can help you solve problems faster and minimize downtime.
