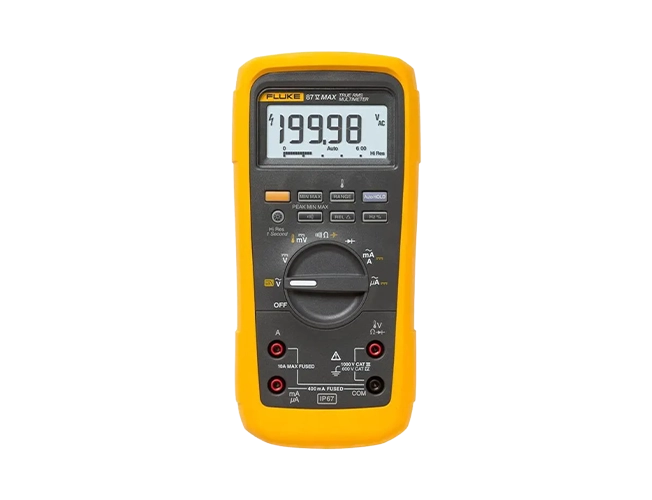

Fluke 87V MAX True-rms Digital Multimeter
-
NG # 00204-HW-FLUKE-005
Manufactured by:
The 87V MAX contains all the trusted features of the most popular digital multimeter used today, the Fluke 87V, and then some. From wet, dusty or dark environments to long days, the 87V MAX was designed to help you finish the most on a work site.
Specification
DC Voltage Range 0.1 mV to 1000 V Accuracy ±(0.05% + 1) Maximum resolution 0.1 mV AC Voltage Range 0.1 mV to 1000 V Accuracy ±(0.7% + 4) true-rms AC bandwidth 20 kHz with low pass filter; 3 dB @ 1 kHz Maximum resolution 0.1 mV DC Current Range 0.1 μA to 10 A
(20 A for 30 seconds maximum)Amps accuracy ±(0.2% + 2) Maximum resolution 0.1 µA AC Current Range 0.1 μA to 10 A
(20 A for 30 seconds maximum)Amps accuracy ±(1.0% + 2) true-rms Maximum resolution 0.1 µA Resistance Range 0.1 Ω to 50 MΩ Accuracy ±(0.2% + 1) Maximum resolution 0.1 Ω Capacitance Range 0.01 nF to 9999 μF Accuracy ±(1% + 2) Maximum resolution 0.01 nF Frequency Range 0.5 Hz to 199.99 kHz Accuracy ±(0.005% + 1) Maximum resolution 0.01 Hz Duty cycle Maximum duty cycle 99.9% Accuracy ±(0.2% per kHz + 0.1%) Maximum resolution 0.1% Temperature measurement range –200.0 °C to 1090 °C
–328.0 °F to 1994.0 °F
excluding probe80 BK temperature probe –40.0 °C to 260 °C, ± 2.2 °C or 2% whichever is greater
–40.0 °F to 500 °F, ± 4.0 °F or 2% whichever is greaterConductance Maximum conductance 60.00 nS Accuracy ±(1.0% + 10) Maximum resolution 0.01 nS Diode test Range 2 V Resolution 0.001V Accuracy ±(1% + 1) Diagnostics and data storage Peak Min/Max 250 μS Min/Max/Avg Yes Reading hold/Auto (Touch) Hold Yes Relative reference Yes Display Digital 6000 counts updates 4/second
19,999 counts in high–resolution modeAnalog bar graph 32 segments, updates 40/second Backlight Two level Low pass filter (VFD measurements) Yes Input Alert™ Yes Safety Specifications Safety rating IEC61010-1: Pollution Degree 2
IEC 61010-2-033: CAT IV 600 V, CAT III 1000 VAgency approvals CE, CSA Mechanical and General Specifications IP rating IEC 60529: IP67 Power Three AA batteries. 800 hours typical, without backlight Size 6.0 x 10.1 x 21.5 cm (with holster) Weight 698.5 g (with holster) Warranty Limited lifetime Environmental Specifications Operating temperature -15 °C to 55 °C, to -40 °C for 20 minutes when taken from 20 °C Storage temperature -40 °C to + 60 °C Humidity (without condensation) 0% – 90% (0 °C – 35 °C)
0% – 70% (35 °C – 55 °C)Operating altitude 2000 m
Description
It features a unique function for accurate voltage and frequency measurements on variable frequency motor drives (VFDs) and other electrically noisy equipment; using true-rms ac voltage and current for accurate measurements on non-linear signals.
