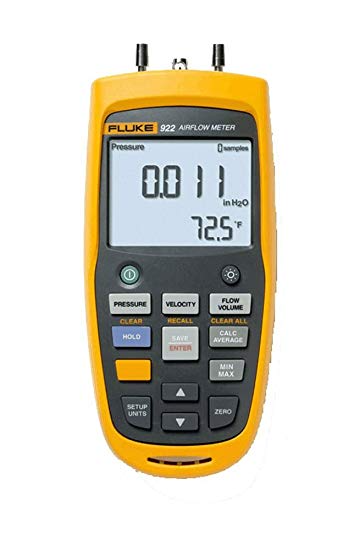

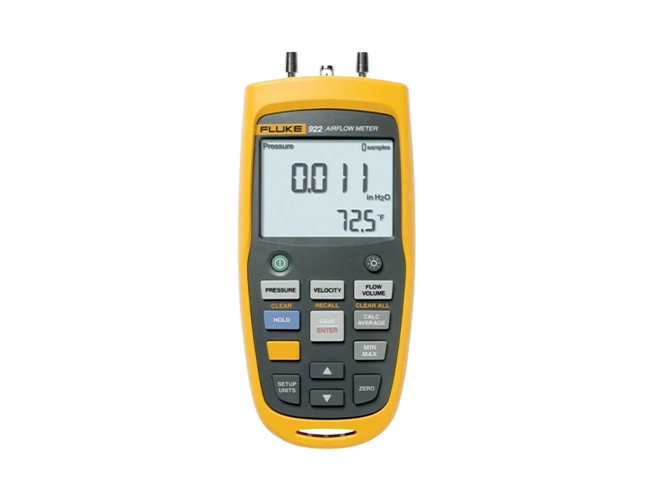

Fluke 922 Airflow Meter/Micromanometer
-
NG # 00217-HW-FLUKE-018
Manufactured by:
Fluke 922 was designed and built for how (and where) you do your job, with performance, ruggedness and ease of use, setting the Fluke 922 apart from the competition. The bright white display and ruggedized holster and wrist strap let you take the Fluke 922 into less than ideal environments. The color-coded hoses help you keep track of where your readings are coming from. The simple, intuitive interface means you can measure pressure, velocity, or airflow at the push of a button. The Fluke 922 helps you analyze airflow. Easily.
Specification
Range / Resolution / Accuracy Air pressure ±4000 Pascals / 1 Pascal / ±1% + 1 Pascal
±16 inH2O/ 0.001 inH2O/±1% + 0.01 inH2O
±400 mmH2O/ 0.1 mmH2O / ±1% + 0.1 mmH2O
±40 mbar /0.01 mbar / ±1% + 0.01 mbar
±0.6 psi / 0.0001 psi /±1% + 0.0001 psiAir velocity 250 to 16,000 fpm / 1 fpm / ±2.5% of reading at 2000 fpm (10.00 m/s)
1 to 80 m/s / 0.001 m/s / ±2.5% of reading at 2000 fpm (10.00 m/s)Air flow (volume) 0 to 99,999 cfm / 1 cfm / Accuracy is a function of velocity and duct size
0 to 99,999 / 1 m3/hr / Accuracy is a function of velocity and duct size
0 to 99,999 l/s / 1 l/s / Accuracy is a function of velocity and duct sizeTemperature 0°C to 50°C / ±1% + 2°C / 0.1°C
32°F to 122°F / ±1% + 4°F / 0.1°FGeneral Operating temperature 0°C to +50°C (+32°F to +122°F) Storage Temperature -40°C to +60°C (-40°F to +140°F) Relative humidity 0% to 90%, non-condensing Operating altitude 2000 m Storage altitude 12000 m Max pressure at each port 10 psi Data storage capacity 99 readings Power, battery life 4 AA batteries Battery life 280 hours without backlight, 60 hours with backlight Vibration MIL-PREF-28800F, Class 3
Description
HVAC technicians want a simple solution for diagnosing ventilation issues. Differential pressure measurements only tell part of the story. Technicians also want to measure air velocity and flow, without having to resort to expensive, difficult to use, specialist tools. The Fluke 922 makes airflow measurements easy by combining three tools: differential pressure, airflow, and velocity into a single, rugged meter.
