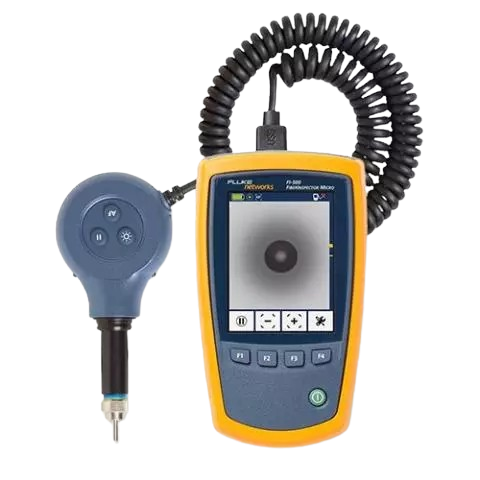

Fluke FI-500 FiberInspector™ Micro

  • NG # 00212-HW-FLUKE-013

Manufactured by:

This seller generally responds in under 48 hours

Ensure the cleanliness and integrity of fiber end faces, even in low-light conditions, with the Fluke Networks FI-500 FiberInspector Micro fiber inspection scope camera.

Add to favorites | Compare this product

Specification

Temperature range without the power adapter
 		Operating: 0 °C to +50 °C, Storage: -30 °C to +60 °C

Temperature range with the power adapter
 		Operating: 0 °C to +40 °C, Storage: -20 °C to + 60 °C

Humidity range
 		Operating: 0% to 95% °C (0 °C to +50 °C) RH non-condensing, Storage: 0% to 95% (35 °C to 45 °C) RH non-condensing

Altitude
 		Operating: 4,000 meters, Storage: 12,000 meters

Vibration
 		2 g, 5 Hz to 500 Hz

Shock
 		1 meter drop test

Safety
 		IEC 61010-1 3rd Edition IEC 62133

Power adapter
 		Input: 100 to 240 VAC±10%, 50/60Hz, Output: 6 VDC, 3 A maximum Class

Display
 		3.2 inch TFT LCD, 320 x 240

Dimensions

Weight
 		4.4 oz (125 g)(with no adapter tip)

Description

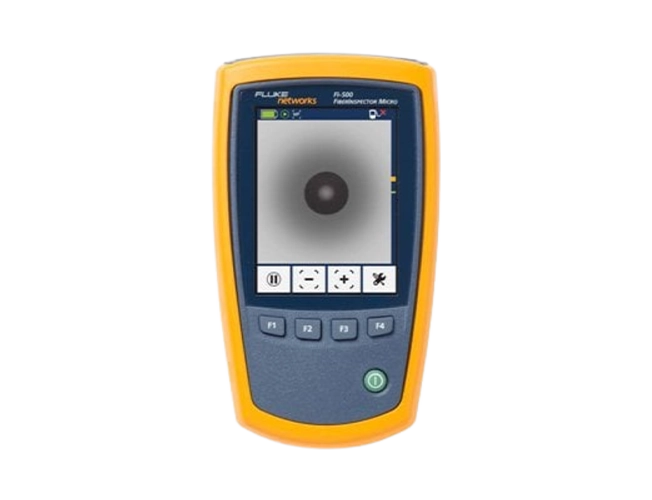

The FI-500 is designed to simplify the inspection process. The built-in PortBright flashlight helps you find the right port or cable. The small-profile probe fits into tight spots, and features pushbutton controls for simple operation. Autofocus camera provides a sharp view of the endface in a few seconds, while the pause button freezes the image on the crisp 320 x 240 display for more detailed inspection.

The FI-500 FiberInspector™ Micro fiber inspection scope camera removes the hassle associated with inspecting fiber end faces, especially in low light and high cable density situations. It is very simple to use: Simply plug the cable into the FI-500 and touch the AF button.
