Fluke Networks LIQ-100 - LinkIQ™ Cable+Network Tester
-
NG # 00203-HW-FLUKE-004
Manufactured by:
The Fluke Networks LIQ-100 LinkIQ™ Cable+Network Tester comes with remote ID 1, quick reference guide, USB-C to USB-A cable, charging cable, Cat6A patch cord, RJ45/11 modular adapter, hanging strap with remote ID holder, and carrying case.
Specification
Languages supported in UI English (SW v1.0) Weight 1 lbs 6 oz (624g) Battery Type: Lithium-ion, 3.6 V, 6400 mAh Life: 8 hours typical Charge time: 4.5 hours Charging temperature range: 0 °C to +40 °C Power Adapter Input: 100 to 240 VAC ą10%, 50/60Hz Output: 15 VDC, 2 A maximum Class II Host Interface USB type C Display 800 x 480 color capacitive multi-touch Dimensions 8.5 in x 4.5 in Operating Temperature 0°C to 45°C Storage Temperature -10°C to +60°C Operating Relative Humidity 0 % to 90 %, 0°C to 35°C 0 % to 70 %, 35°C to 45°C Operating Altitude 4,000 m 3,200 m with ac adapter Vibration Random, 2 g, 5 Hz-500 Hz Drop 1 m drop, 6 sides Active Network Diagnostics Diagnostic Protocols Link Layer Discovery Protocol (LLDP) Cisco Discovery Protocol (CDP) Fast Link Pulses (FLP) Nearest Device Diagnostics (If available throughdiagnostic protocols) Switch Name Port Number VLAN Name Advertised Data Rates Advertised Duplex Power Over Ethernet Compatibility IEEE 802.3af/at (SW v1.0) Hardware negotiation with signature resistance Software negotiation withLLDP/CDP Power Over Ethernet Diagnostics Advertised Power Class (1 to 4) (SW v1.0) Advertised Available Power Powered Pairs Diagnostics forboth Single and Dual signatures Power Over Ethernet Measurements Loaded Voltage (V) Loaded Power (W) Port Blink Blink the light of the connected port Cable Test Specifications Test Port Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs Commissioning Autotests 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only Test Speed: 6 seconds for lengths< 70 m Cable Types Balanced twisted-pair cabling Unshielded twisted-pair Screened twisted-pair 2-pair and/or 4-pair Wire Map-Only Tests Document wire map Length of each pair Diagnose split pairs User selectable T568A or T568B User selectable crossover settings(Straight through, Half-crossover, Full-crossover) Test speed: 1 second for lengths < 120 m Length (Maximum) 305 m (1000 ft) Nominal Velocity of Propagation (NVP) User settable Tone Generator Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analogy tones compatible with general analogprobes Remote ID Locators Use remote ID terminations to identify up to 7 unique ports or office outlets
Description

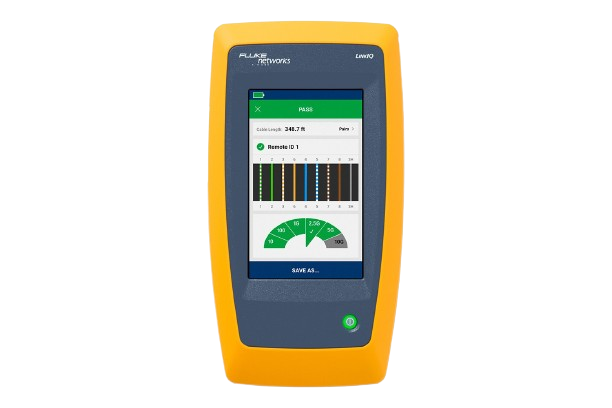

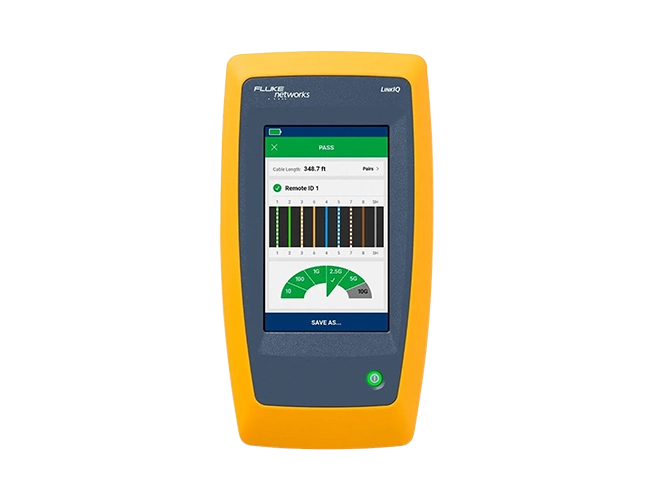

The LinkIQ™ is capable of measuring lengths up to 1000 feet (305 m) and provides distance to faults such as opens, shorts, and unterminated cable. Using the remote ID allows for a complete wire map of the cable pairs which helps identify miswired and split pairs. The primary cable testing feature of LinkIQ™ is the cable performance test which qualifies the cabling bandwidth from 10BASE-T to 10GBASE-T (10 Mb/s up to 10 Gb/s).
