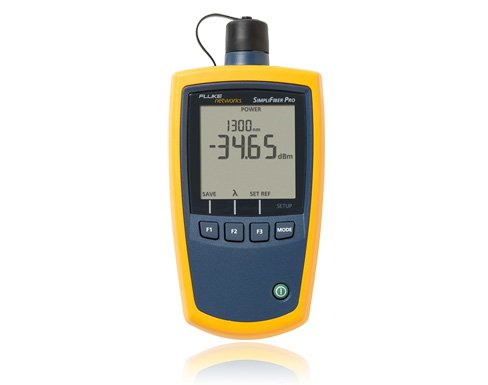

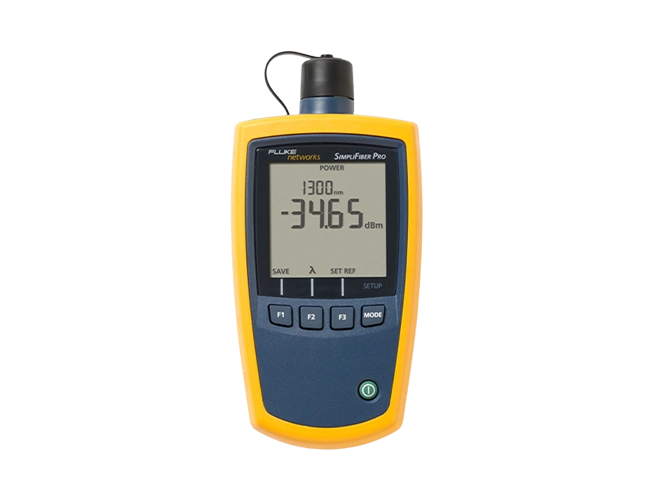

Fluke SimpliFiber® Pro Optical Power Meter and Fiber Test Kits
-
NG # 00213-HW-FLUKE-014
Manufactured by:
Effortlessly measure fiber loss with our user-friendly tester, equipped with advanced time-saving features. Select from a range of kits offering configurations tailored to fulfill your fiber verification, inspection, and cleaning requirements
Specification
Operating Temperature
-10º C to 50º C
Storage Temperature
-20º C to 50º C
Operating Humidity
95% (10º C to 35º C) Non-Condensing 75% (35º C to 40º C) Non-Condensing Uncontrolled <10º C
EMI, RFI, EMC
Standards compliant1
Detector Type
InGaAs
Calibrated Wavelengths
850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm
Power Measurement Linearity
±0.2 dB (850 nm)1 ±0.1 dB (1300, 1310, 1490, 1550, 1625 nm)2
Low Battery Warning
Yes, low battery icon blinks
Size (L x W x H)
6.4 in x 3.2 in x 1.5 in (16.5 cm x 8.0.cm x 3.9 cm)
Weight
11.5 oz (325 grams)
Description
SimpliFiber® Pro Optical Power Meter and Fiber Test Kits include all the tools necessary to verify and troubleshoot optical fiber cabling systems, measure loss and power levels, and inspect and clean connector end-faces.
Replacing the popular SimpliFiber series, these next generation optical loss test kits boast industry-leading functions such as dual-wavelength testing and automatic-wavelength detection, in addition to unique features such as CheckActive™, FindFiber™, and Min/Max. With such advanced, yet easy-to-use, capabilities that reduce test times, SimpliFiber Pro is simply the best first-line fiber test kit on the market.
